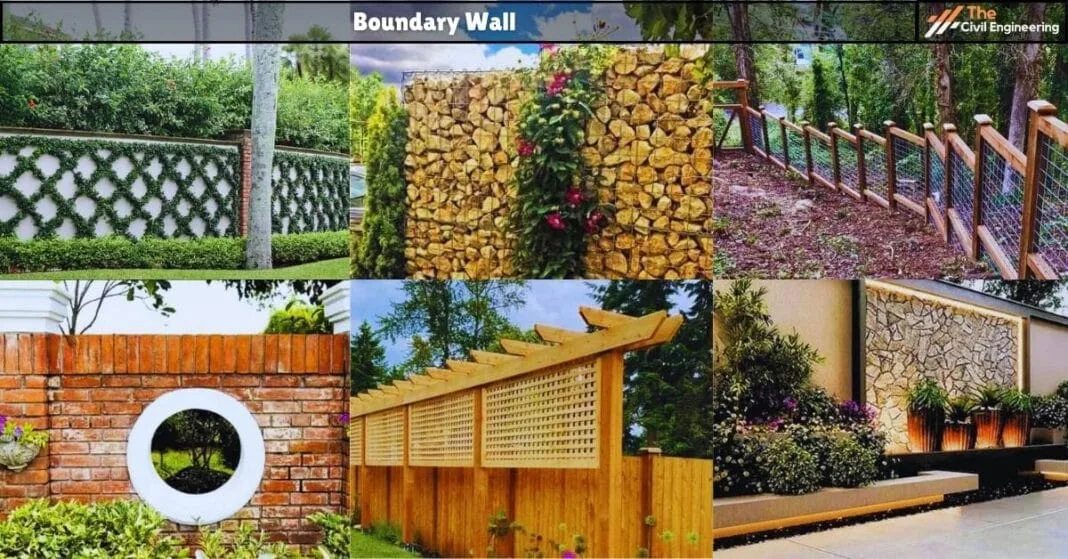

What is Boundary Wall? : 50+ Designs, Types, Advantages & Disadvantages



 ✔ The wall, fence, or enclosing structure constructed to separate two parcels of lands, properties, or borders is a boundary wall.

 ✔ Local regulations may guide the construction of boundary walls, like specific height limits, setbacks from property lines, and other criteria. So, before the commencement of the construction, local regulations should be studied well.






1. Importance of Boundary Wall

The importance of boundary walls are:

a. To provide safety and security to the structure.

b. To reduce queries and fights between landlords.

c. To separate the boundary between the countries.

d. To separate two parcels of lands or properties.






2. Types of Boundary Wall



a. Brick Boundary Wall

The boundary wall constructed using bricks as the key material is called a brick boundary wall.



Construction of Brick Boundary Wall

 ✔ To initiate the construction process, the designated area is excavated to a depth of 4′-5′, and the soil is uniformly compacted at the bottom of the excavation.

 ✔ A brick flat soling is then placed at the lowest point, followed by the application of PCC.

 ✔ Above the PCC, a trapezoidal footing is constructed, and a tie beam with a thickness of 10″ is built.

 ✔ Once the tie beam is in place, a column is erected to support the boundary wall and prevent structural failure.

 ✔ To enhance the security of the structure, brickwork is performed over the tie beam.

 ✔ Finally, coping is added above the brickwork to complete the construction process.



A Brick Boundary Wall is widely used in residential, commercial, and industrial properties to separate two parcels of lands, properties, or borders. Some of the information regarding the brick boundary wall is given below:

AspectDescription
MaterialsClay bricks, concrete bricks, or masonry bricks with mortar bonding.
Design and AestheticsClassic appearance with various style options.
Height and WidthHeights: 1.5 to 2.5 meters (5-8 feet), Widths: 20-30 cm (8-12 inches).
Privacy and SecurityHigh privacy and security; suitable for residential and commercial use.
DurabilityWeather-resistant and low maintenance with occasional repointing.
CostVariable cost based on materials, height, and design complexity.
FoundationsRequire strong foundations; depth varies by wall height and soil conditions.
Local RegulationsCheck local building codes and regulations for compliance.
MaintenancePeriodic inspections and maintenance for mortar and cracks.
CustomizationIt is highly customizable in brick colors, patterns, and textures.



Standard Height of Brick Boundary Wall

The standard height and width of brick boundary wall in different nations is provided below:

RegionTypical HeightTypical Width
Asia1.5 – 2.5 meters (5 – 8 feet)20 – 30 centimeters (8 – 12 inches)
Europe1.0 – 2.0 meters (3 – 6.5 feet)25 – 40 centimeters (10 – 16 inches)
USA0.9 – 1.8 meters (3 – 6 feet)20 – 30 centimeters (8 – 12 inches)
Australia1.2 – 2.4 meters (4 – 8 feet)20 – 30 centimeters (8 – 12 inches)
India1.5 – 2.5 meters (5 – 8 feet)20 – 30 centimeters (8 – 12 inches)
UK1.0 – 2.0 meters (3 – 6.5 feet)25 – 40 centimeters (10 – 16 inches)
Canada1.0 – 2.0 meters (3 – 6.5 feet)25 – 40 centimeters (10 – 16 inches)
Philippines1.5 – 2.5 meters (5 – 8 feet)20 – 30 centimeters (8 – 12 inches)

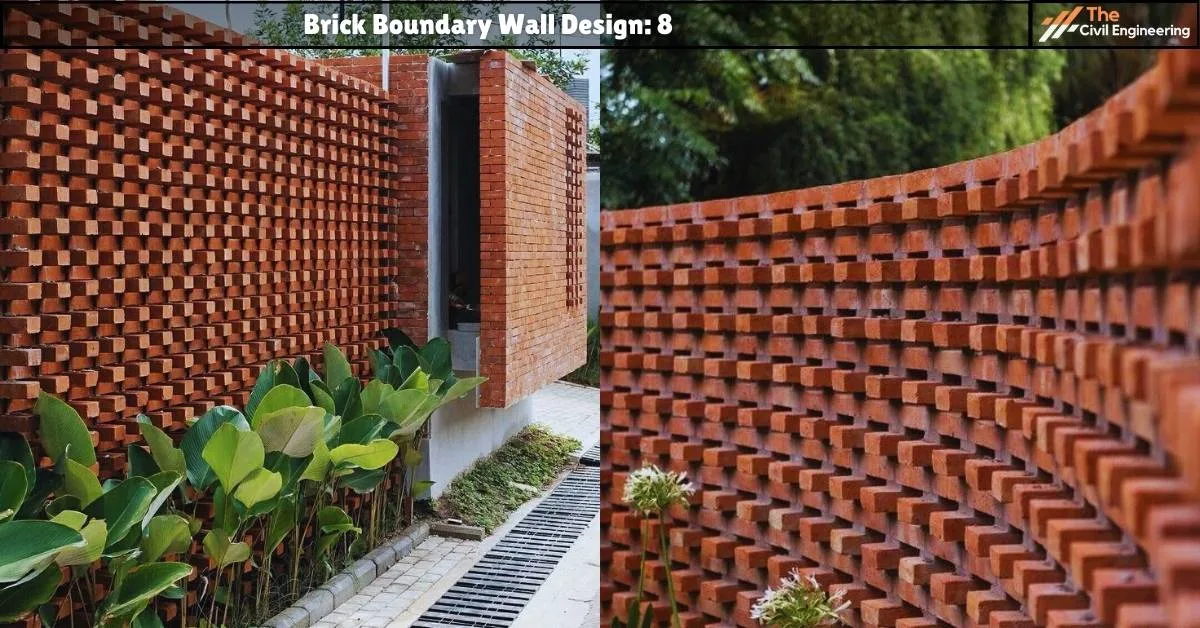

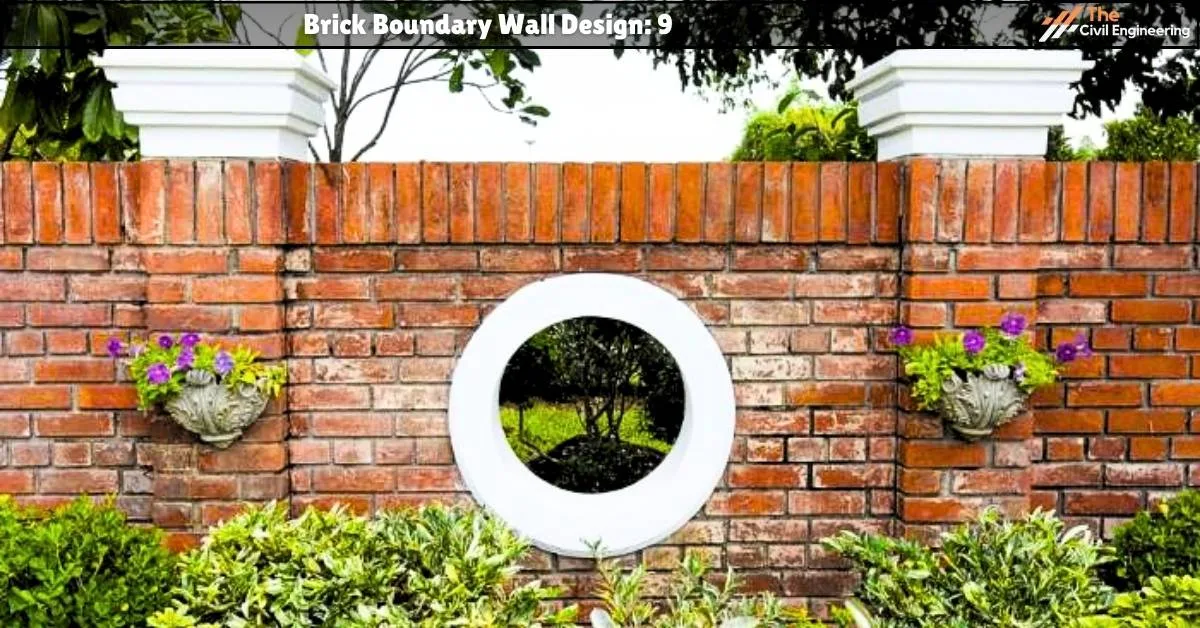

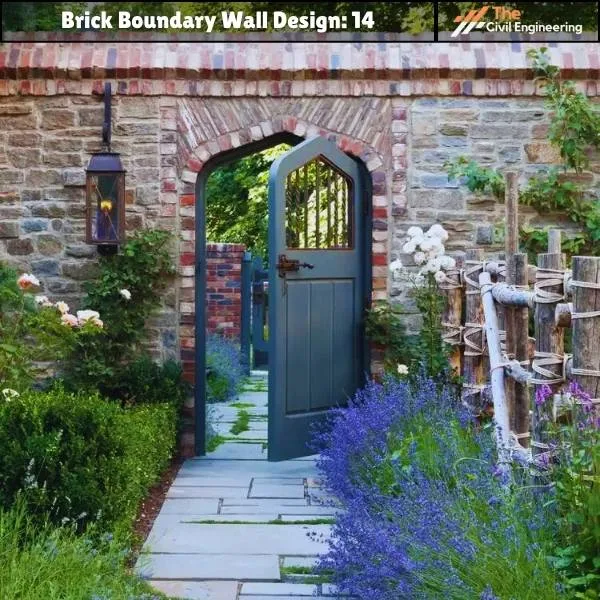

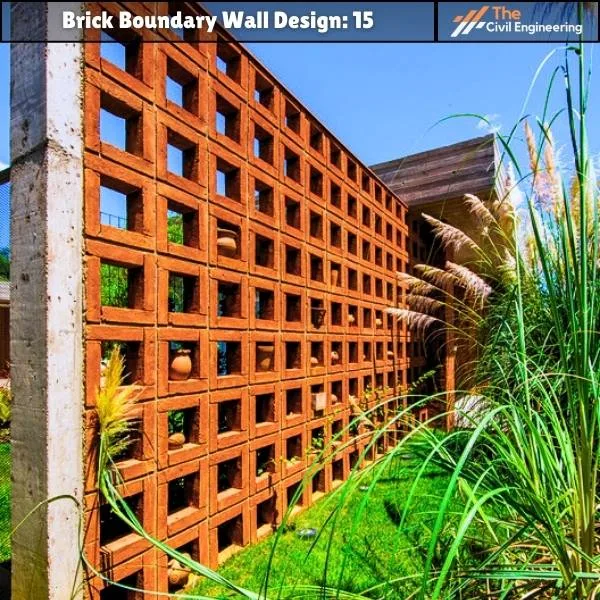

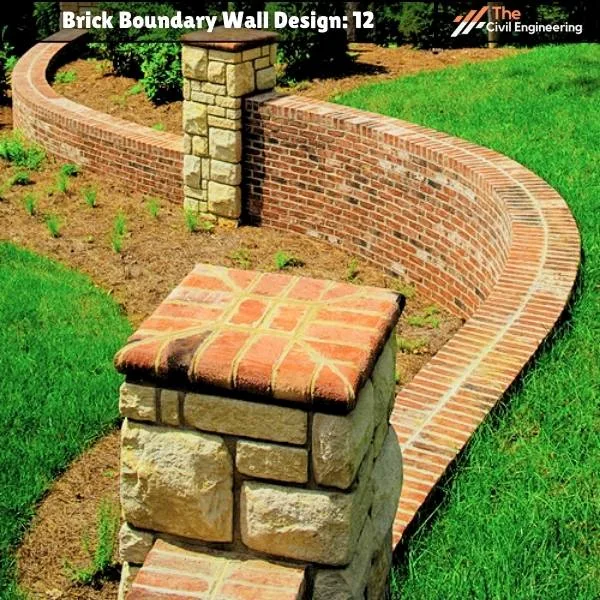

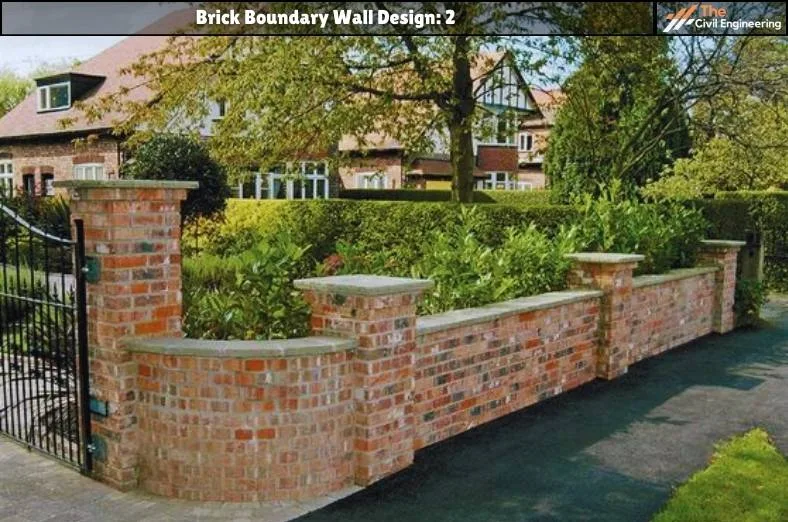

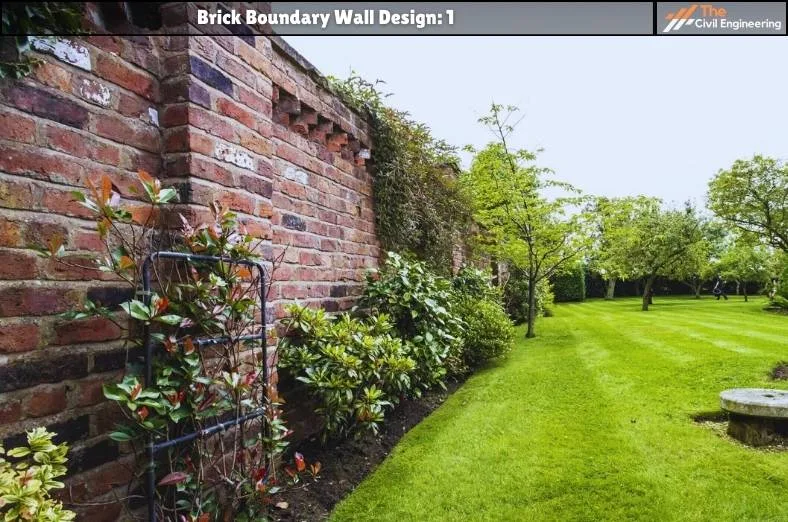

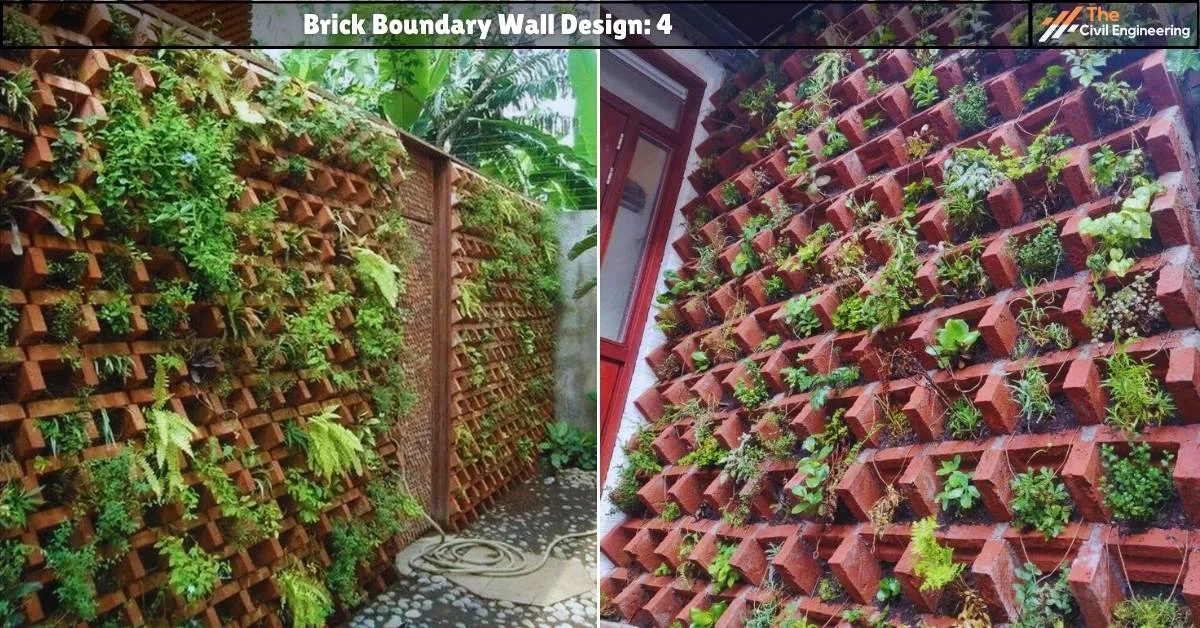

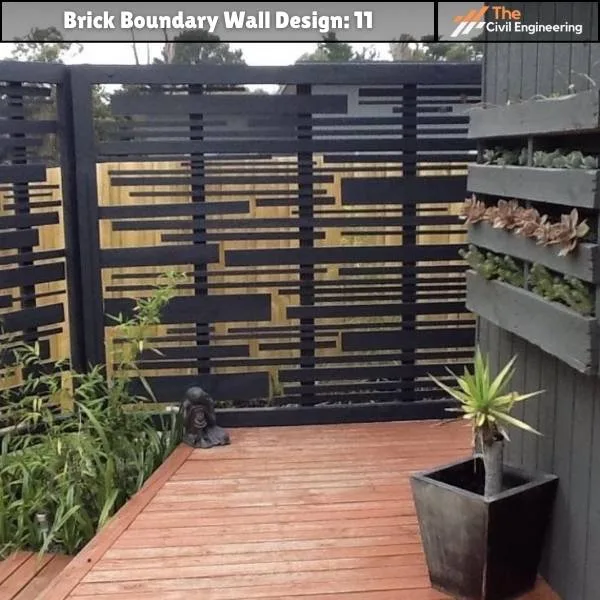

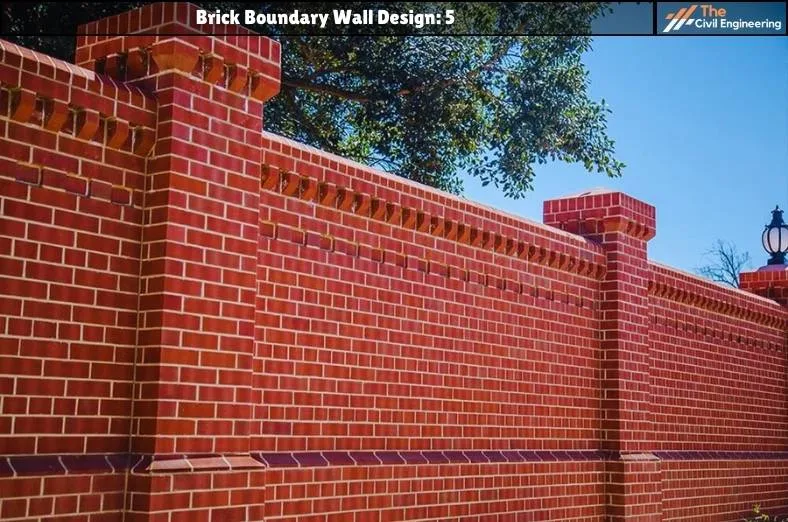

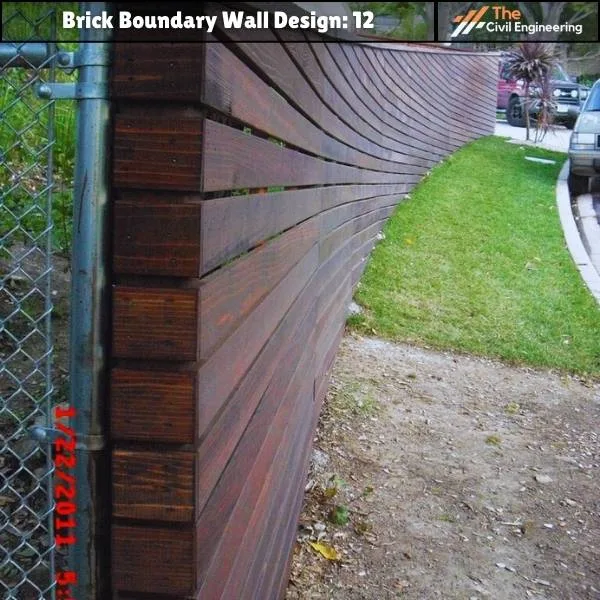

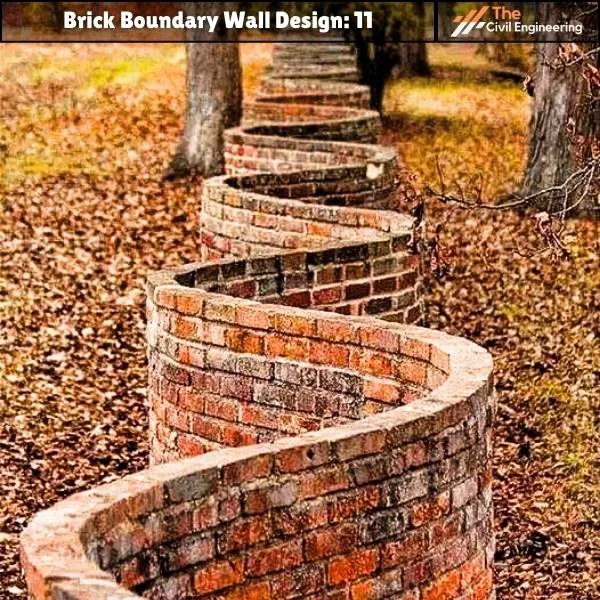

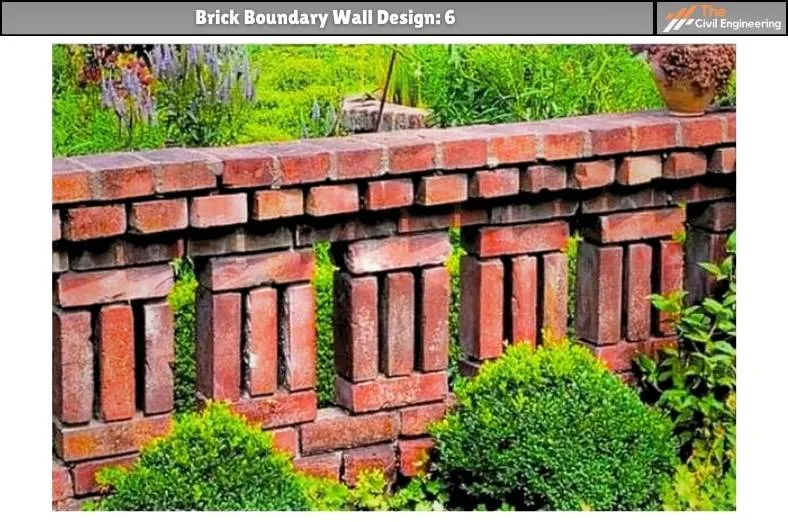

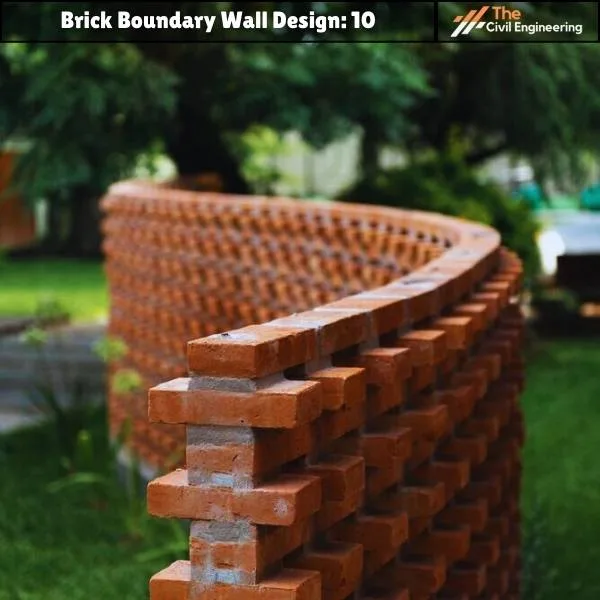

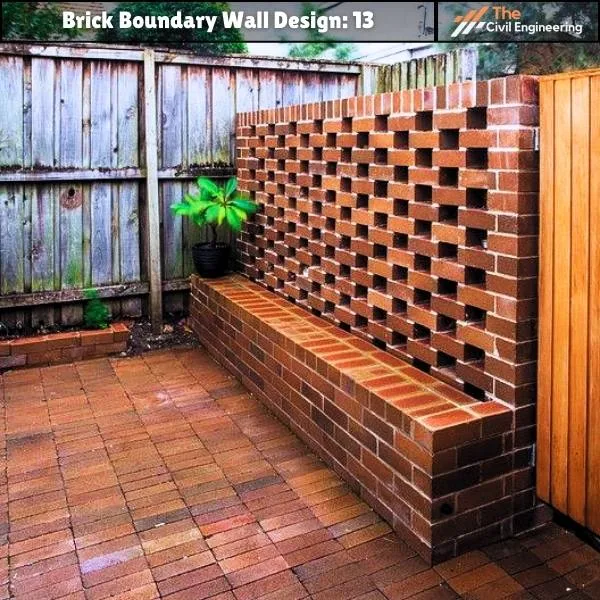

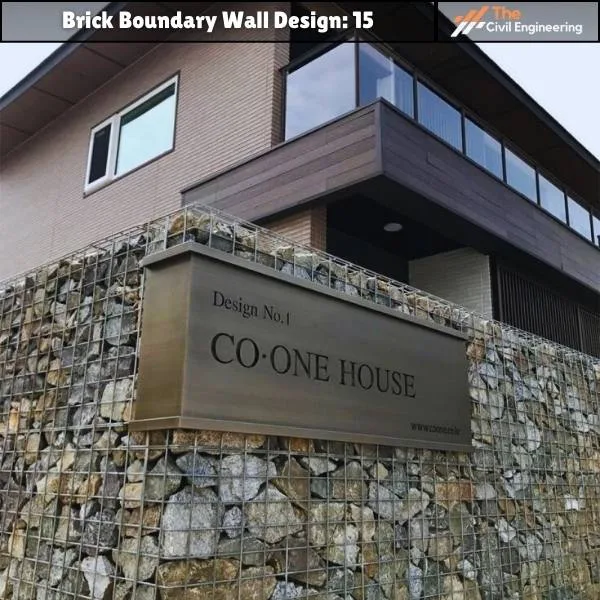

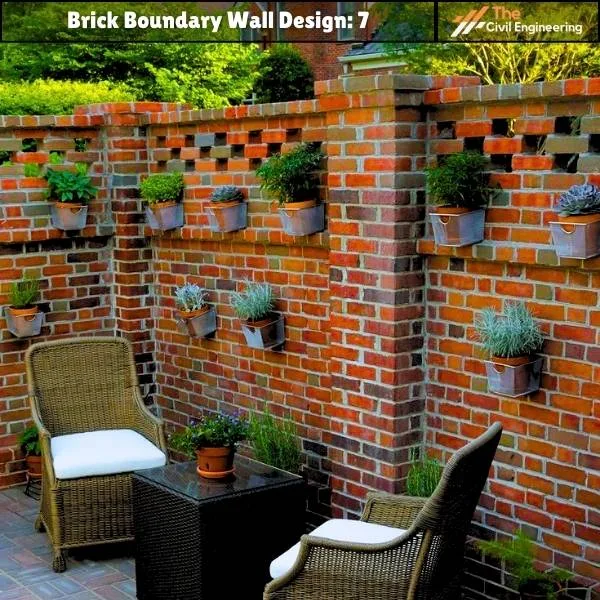

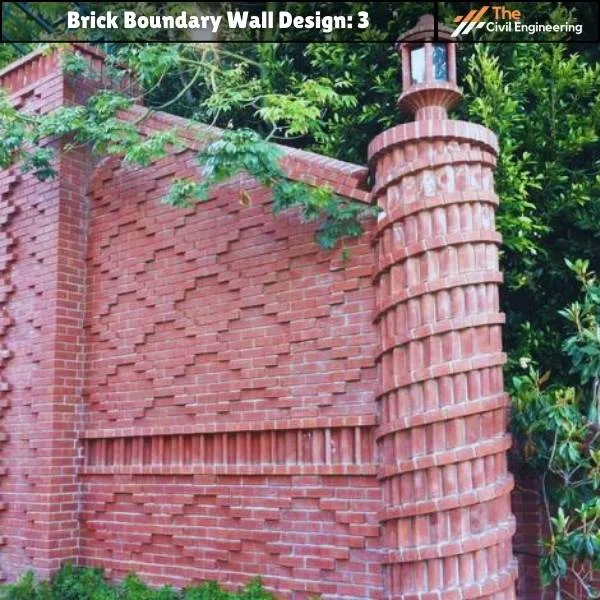

Different Brick Boundary Wall Designs



Brick Boundary Wall : 15 Designs, Important Details & Standard Height



Brick Boundary Wall : 15 Designs, Important Details & Standard Height



Brick Boundary Wall : 15 Designs, Important Details & Standard Height



Brick Boundary Wall : 15 Designs, Important Details & Standard Height



Brick Boundary Wall : 15 Designs, Important Details & Standard Height



Brick Boundary Wall : 15 Designs, Important Details & Standard Height



Brick Boundary Wall : 15 Designs, Important Details & Standard Height



Brick Boundary Wall : 15 Designs, Important Details & Standard Height



Brick Boundary Wall : 15 Designs, Important Details & Standard Height



Brick Boundary Wall : 15 Designs, Important Details & Standard Height



Brick Boundary Wall : 15 Designs, Important Details & Standard Height



Brick Boundary Wall : 15 Designs, Important Details & Standard Height



Brick Boundary Wall : 15 Designs, Important Details & Standard Height



Brick Boundary Wall : 15 Designs, Important Details & Standard Height



Brick Boundary Wall : 15 Designs, Important Details & Standard Height Save this picture! Minx House / lb+mr - Exterior Photography© Favaro Jr. Save this picture!Minx House / lb+mr - Image 37 of 37Lateral facade






b. Stone Boundary Wall

The boundary wall constructed using stones as the key material is called a stone boundary wall.

Some of the information regarding the brick boundary wall is given below:

AspectDescription
MaterialsNatural stone blocks with mortar bonding.
Design & StyleRustic appearance with various stone types.
Height & WidthHeights: 1.5-2.5 meters, Widths: 30-45 cm.
Privacy & SecurityOffers privacy and security for different settings.
DurabilityHighly weather-resistant; low maintenance.
CostVariable based on stone type, height, and design.
FoundationsRequires strong foundations; depth varies.
RegulationsComply with local building codes and rules.
MaintenancePeriodic inspections and mortar upkeep.
CustomizationLimited customization compared to bricks.



Standard Height of Stone Boundary Wall

The standard height and width of stone boundary wall in different nations is provided below:

RegionTypical HeightTypical Width
Asia1.5 – 2.5 meters (5 – 8 feet)30 – 45 centimeters (12 – 18 inches)
Europe1.0 – 2.0 meters (3 – 6.5 feet)30 – 45 centimeters (12 – 18 inches)
USA0.9 – 1.8 meters (3 – 6 feet)30 – 45 centimeters (12 – 18 inches)
Australia1.2 – 2.4 meters (4 – 8 feet)30 – 45 centimeters (12 – 18 inches)
India1.5 – 2.5 meters (5 – 8 feet)30 – 45 centimeters (12 – 18 inches)
UK1.0 – 2.0 meters (3 – 6.5 feet)30 – 45 centimeters (12 – 18 inches)
Canada1.0 – 2.0 meters (3 – 6.5 feet)30 – 45 centimeters (12 – 18 inches)
Philippines1.5 – 2.5 meters (5 – 8 feet)30 – 45 centimeters (12 – 18 inches)

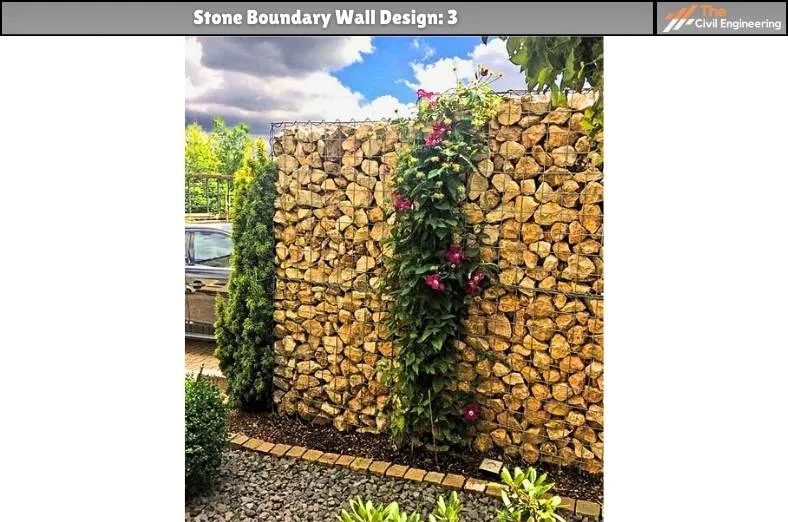

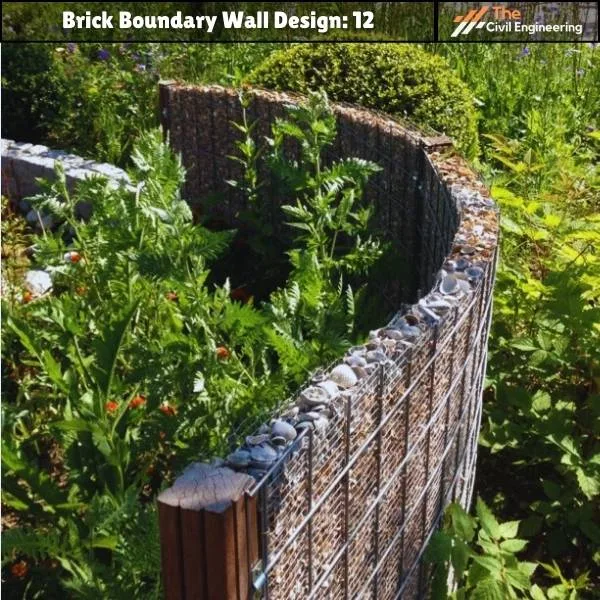

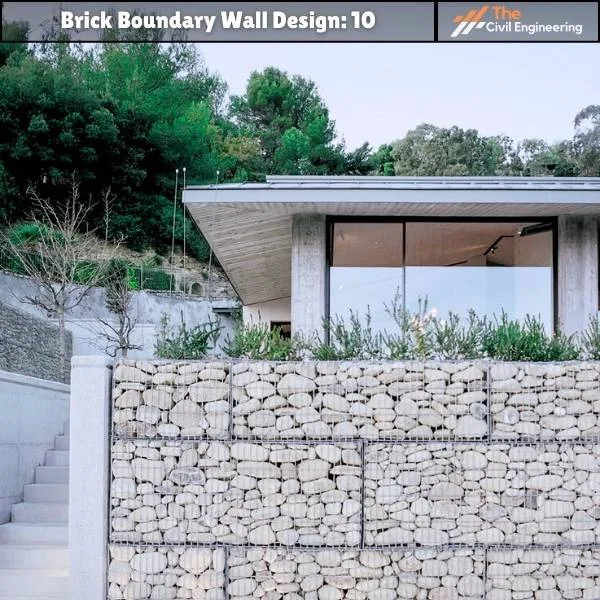

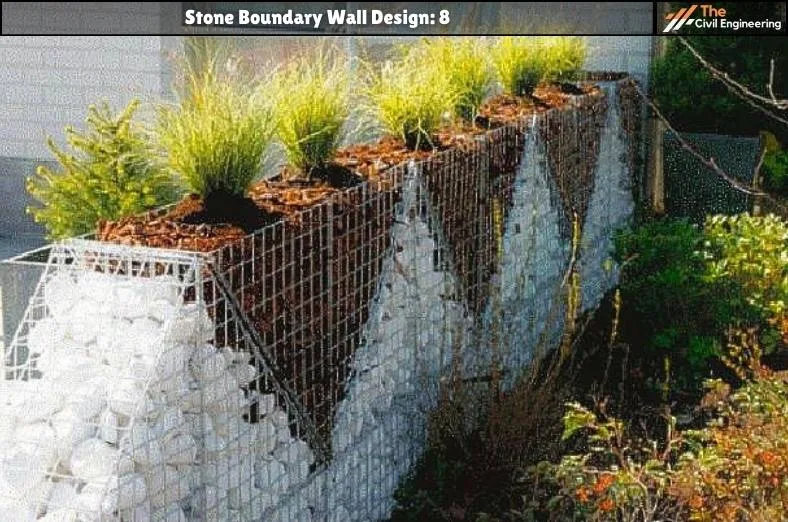

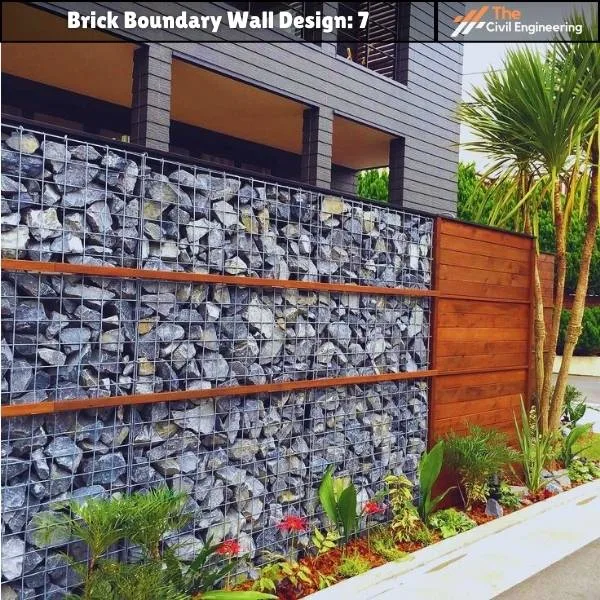

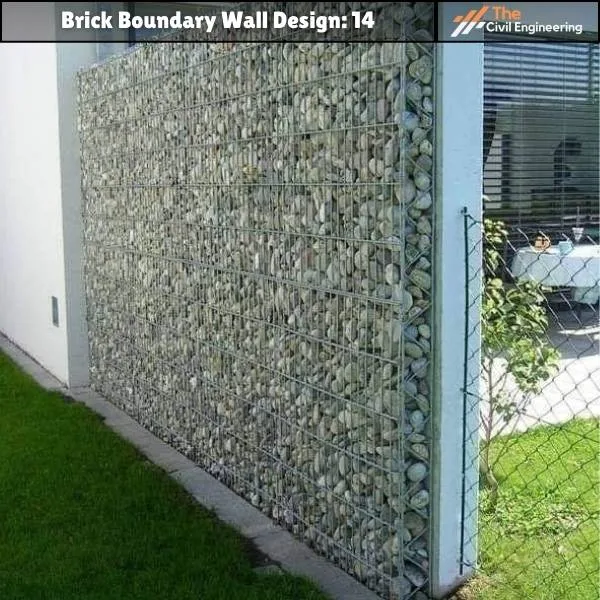

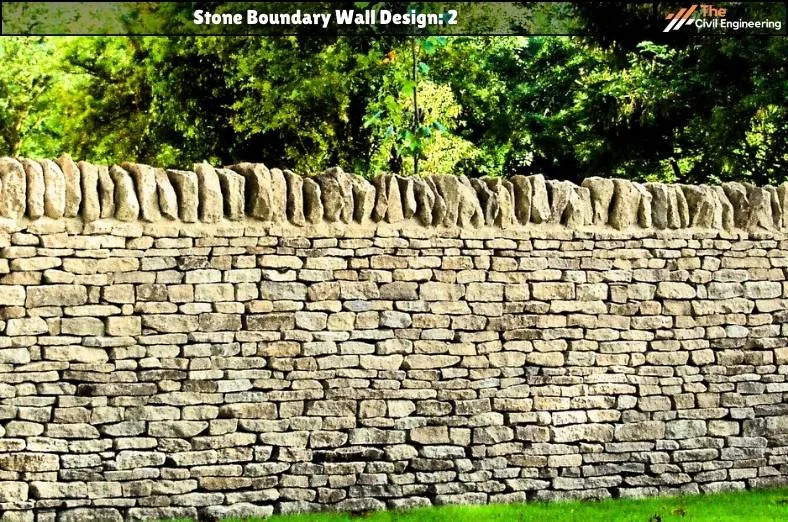

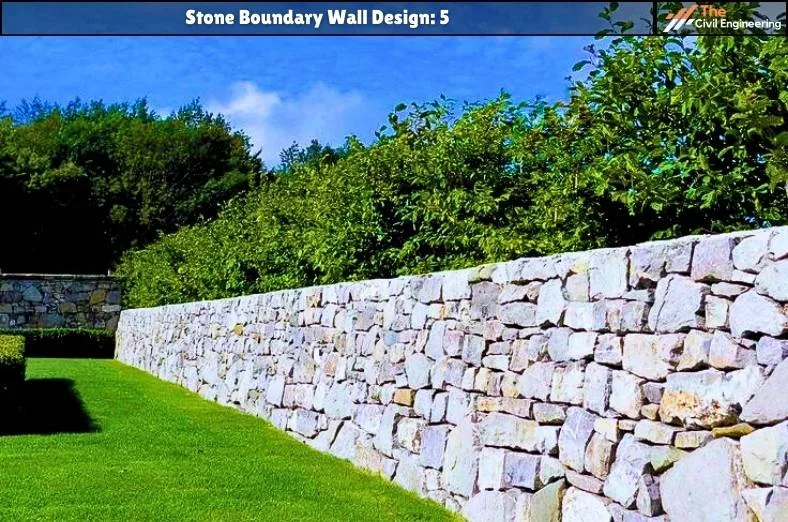

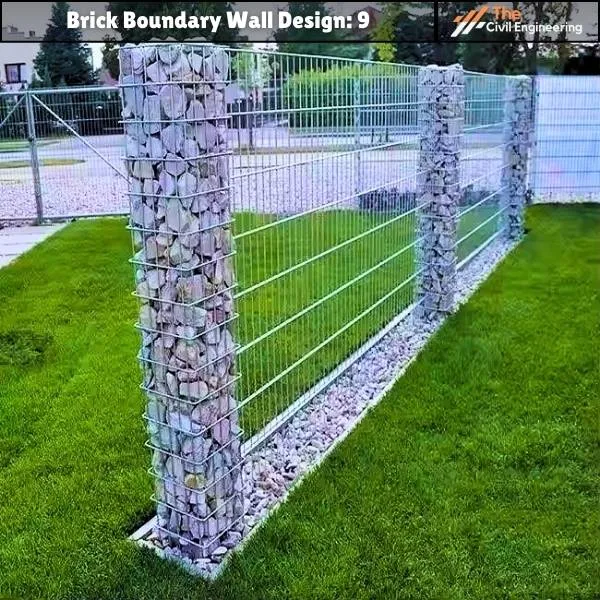

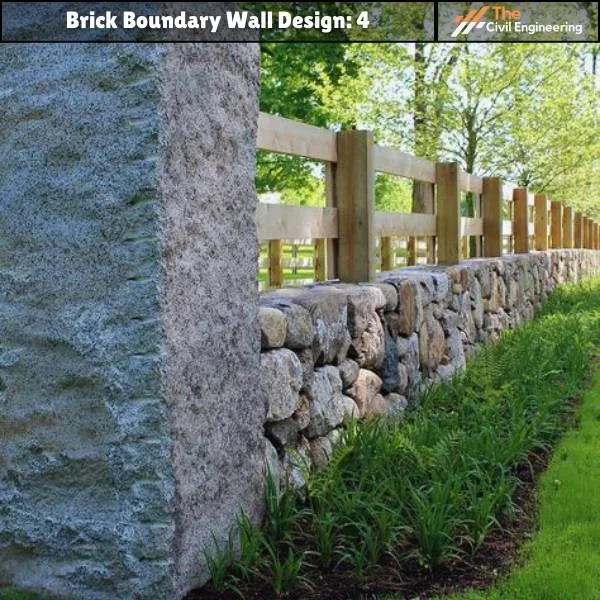

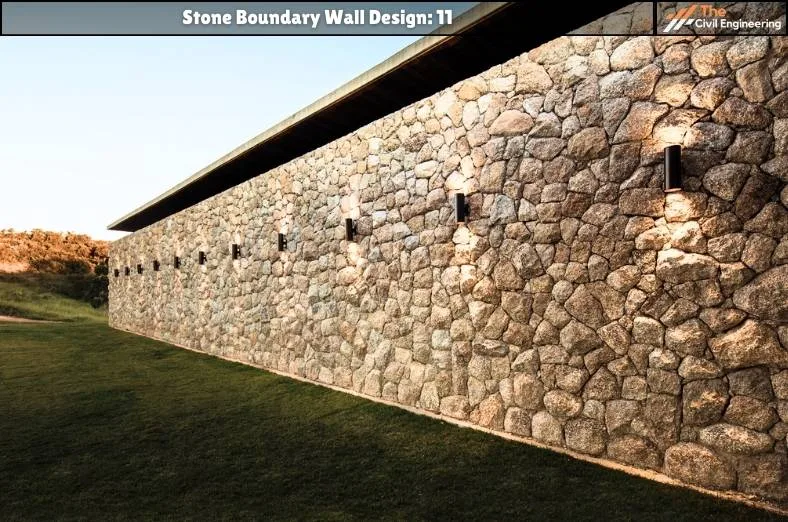

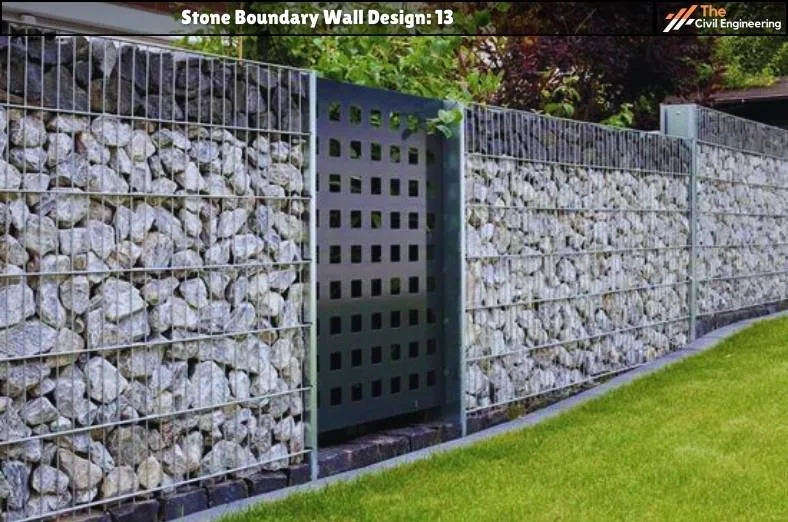

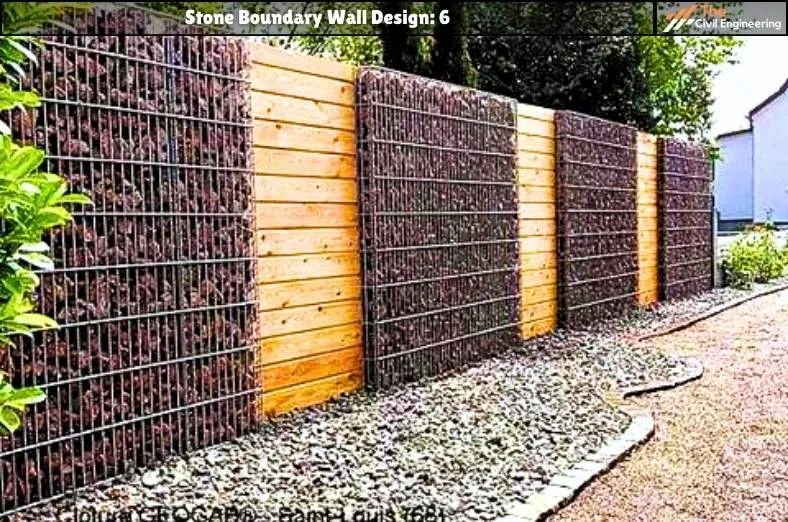

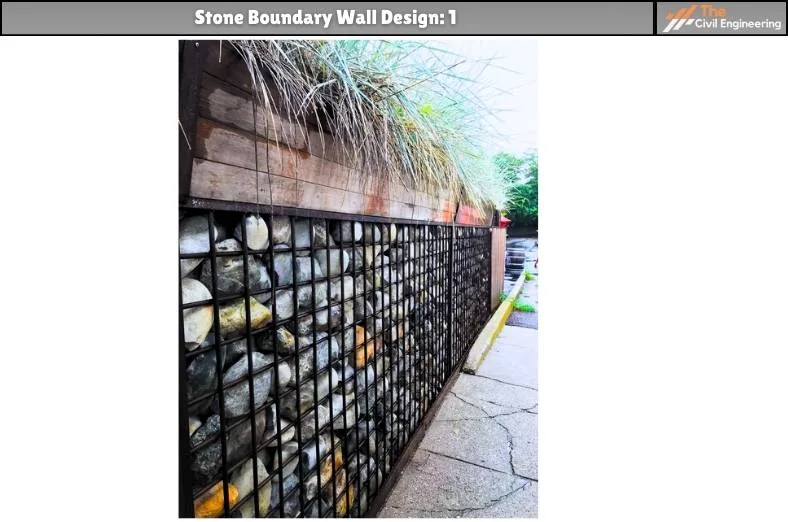

Stunning Designs of Stone Boundary Wall



Stone Boundary Wall: 15 Stunning Designs, Key Details, and Standard Sizes



Stone Boundary Wall: 15 Stunning Designs, Key Details, and Standard Sizes



Stone Boundary Wall: 15 Stunning Designs, Key Details, and Standard Sizes



Stone Boundary Wall: 15 Stunning Designs, Key Details, and Standard Sizes



Stone Boundary Wall: 15 Stunning Designs, Key Details, and Standard Sizes



Stone Boundary Wall: 15 Stunning Designs, Key Details, and Standard Sizes



Stone Boundary Wall: 15 Stunning Designs, Key Details, and Standard Sizes



Stone Boundary Wall: 15 Stunning Designs, Key Details, and Standard Sizes



Stone Boundary Wall: 15 Stunning Designs, Key Details, and Standard Sizes



Stone Boundary Wall: 15 Stunning Designs, Key Details, and Standard Sizes



Stone Boundary Wall: 15 Stunning Designs, Key Details, and Standard Sizes



Stone Boundary Wall: 15 Stunning Designs, Key Details, and Standard Sizes



Stone Boundary Wall: 15 Stunning Designs, Key Details, and Standard Sizes



Stone Boundary Wall: 15 Stunning Designs, Key Details, and Standard Sizes



Stone Boundary Wall: 15 Stunning Designs, Key Details, and Standard Sizes






c. Wooden Boundary Wall

The boundary wall constructed using wood as the key material is called a wooden boundary wall.

Some of the information regarding the wooden boundary wall is given below:

AspectDescription
MaterialsWooden planks or logs, typically treated for durability.
Design & StyleNatural and rustic appearance; various wood types available.
Height & WidthHeights: 1.0-2.0 meters, Widths: 10-20 cm.
Privacy & SecurityIt provides privacy but may be less secure than other materials.
DurabilitySubject to weathering and requires regular maintenance.
CostVariable based on wood type, height, and design.
FoundationsRequires sturdy post or beam foundations.
RegulationsMust adhere to local building codes and regulations.
MaintenanceFrequent maintenance due to wood’s susceptibility to decay.
CustomizationOffers flexibility in design and finish options.



Standard Height of Wooden Boundary Wall

The standard height and width of wooden boundary wall in different nations is provided below:

RegionTypical HeightTypical Width
Asia1.0 – 2.0 meters (3 – 6.5 feet)10 – 20 centimeters (4 – 8 inches)
Europe1.0 – 2.0 meters (3 – 6.5 feet)10 – 20 centimeters (4 – 8 inches)
USA0.9 – 1.8 meters (3 – 6 feet)10 – 20 centimeters (4 – 8 inches)
Australia1.0 – 2.0 meters (3 – 6.5 feet)10 – 20 centimeters (4 – 8 inches)
India1.0 – 2.0 meters (3 – 6.5 feet)10 – 20 centimeters (4 – 8 inches)
UK1.0 – 2.0 meters (3 – 6.5 feet)10 – 20 centimeters (4 – 8 inches)
Canada1.0 – 2.0 meters (3 – 6.5 feet)10 – 20 centimeters (4 – 8 inches)
Philippines1.0 – 2.0 meters (3 – 6.5 feet)10 – 20 centimeters (4 – 8 inches)

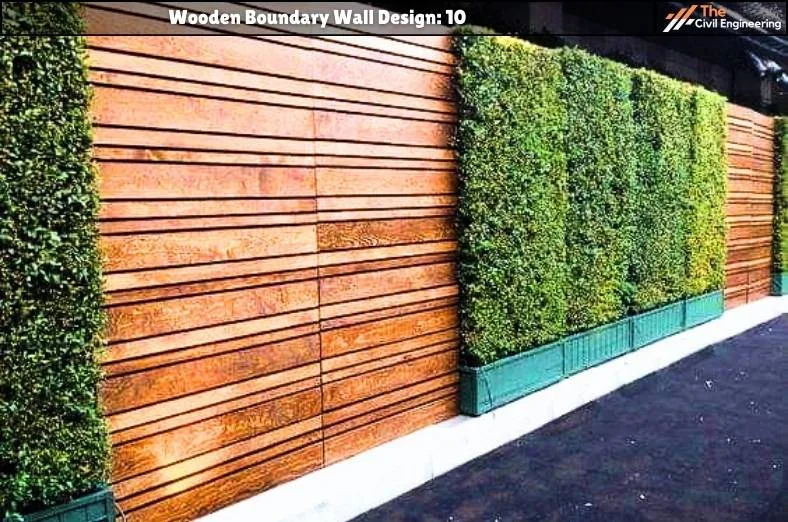

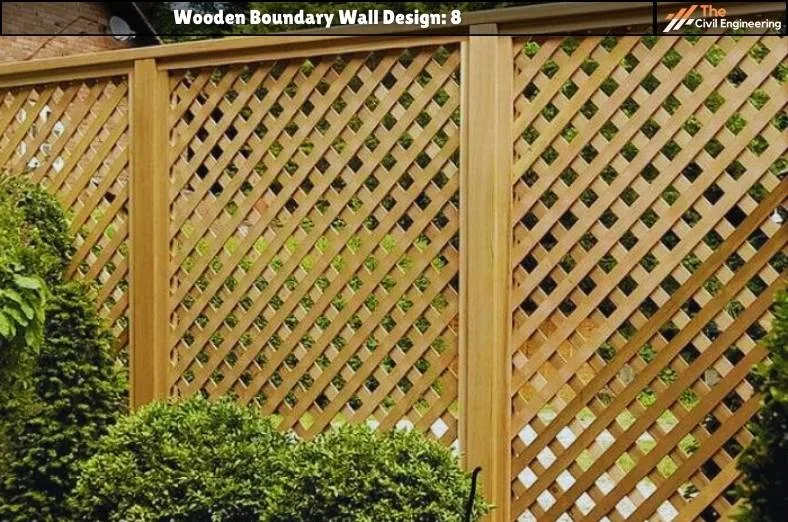

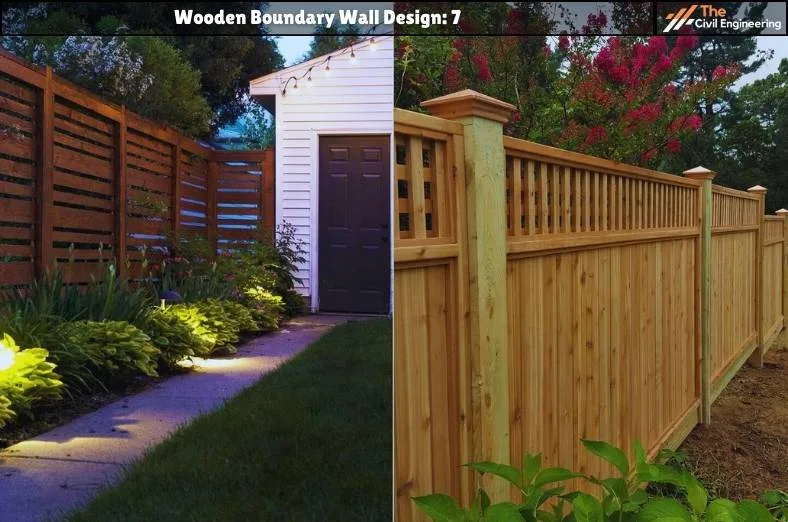

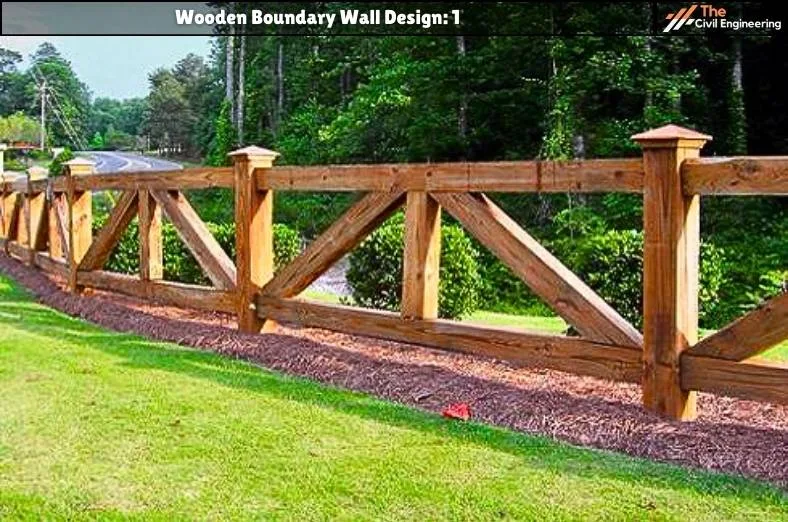

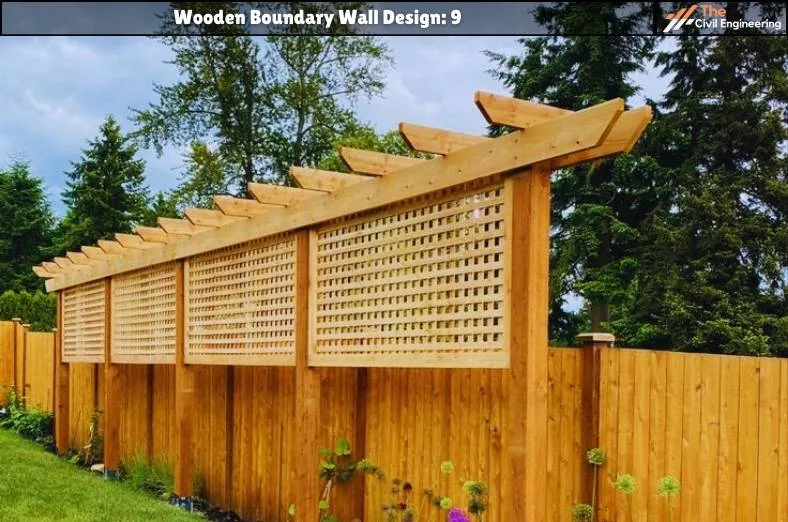

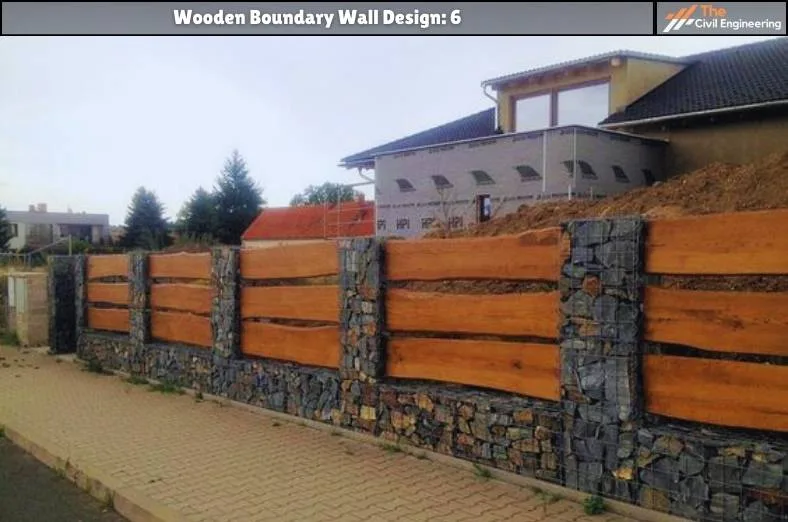

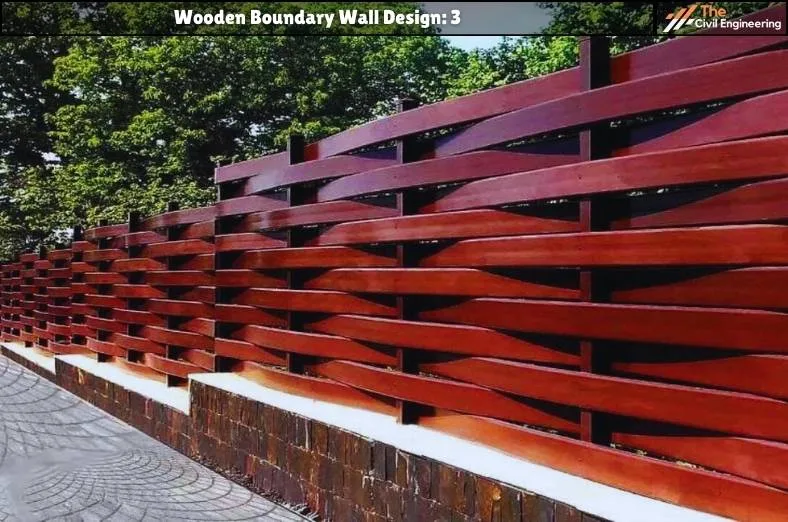

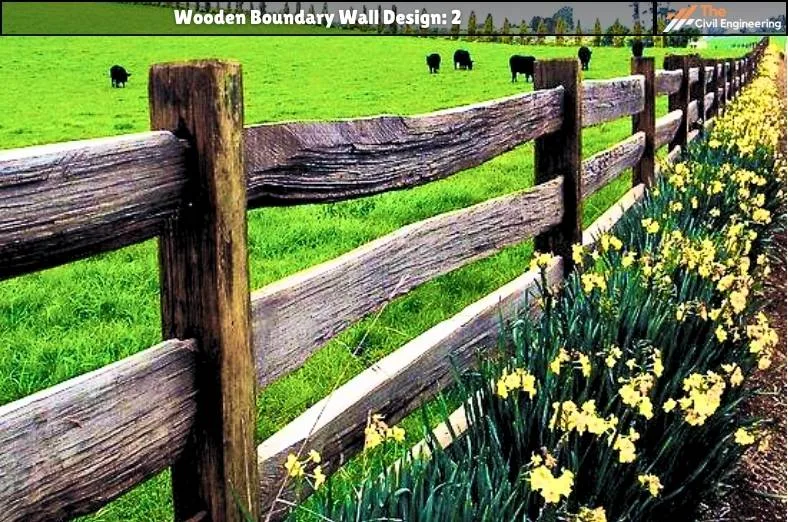

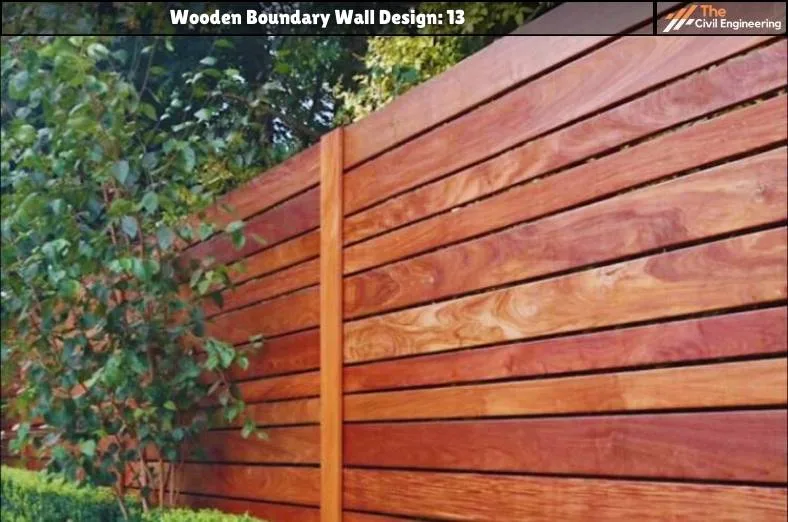

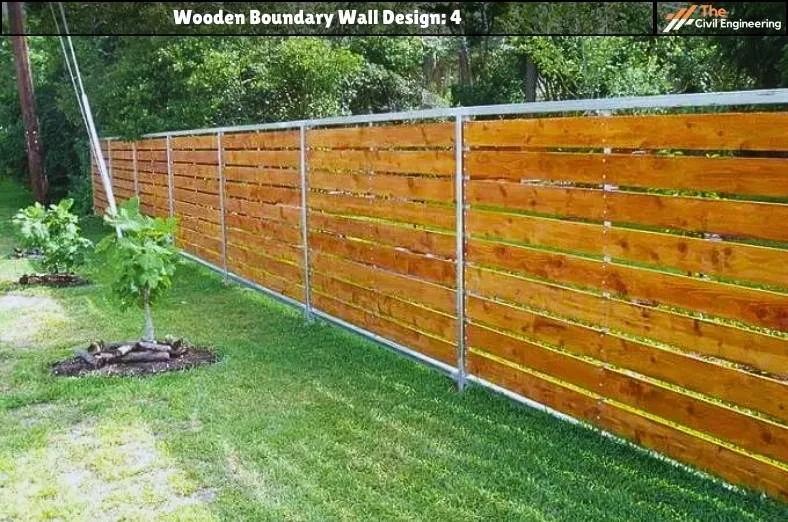

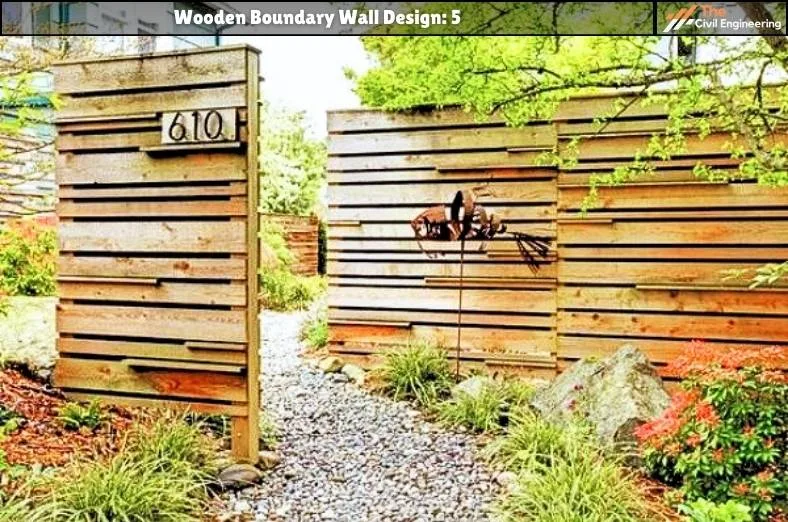

Stunning Designs of Wooden Boundary Wall



Wooden Boundary Wall



Wooden Boundary Wall



Wooden Boundary Wall



Wooden Boundary Wall



Wooden Boundary Wall



Wooden Boundary Wall



Wooden Boundary Wall



Wooden Boundary Wall



Wooden Boundary Wall



Wooden Boundary Wall



Wooden Boundary Wall



Wooden Boundary Wall



Wooden Boundary Wall



Wooden Boundary Wall



Wooden Boundary Wall






d. Steel/ Iron Boundary Wall

The boundary wall constructed using steel as the key material is called a steel boundary wall.

It is also referred to as the Iron Boundary Wall.

Most wire-fenced boundary walls are made up of steel, so we have included those inside the steel boundary walls.

Some of the information regarding the steel boundary wall is given below:



AspectDescription
MaterialsSteel or iron, often with decorative elements.
Design & StyleModern and industrial appearance; versatile design options.
Height & WidthHeights: 1.0-2.0 meters, Widths: 5-10 cm.
Privacy & SecurityIt provides some privacy and offers good security.
DurabilityHighly durable and resistant to weathering.
CostModerate to high price depending on design and materials.
FoundationsRequires solid foundations for stability.
RegulationsMust adhere to local building codes and standards.
MaintenanceMinimal maintenance; occasional rust prevention required.
CustomizationCustomizable with various ornamental features.



Standard Height of Steel Boundary Wall

The standard height and width of steel boundary wall in different nations is provided below:

RegionTypical HeightTypical Width
Asia1.0 – 2.0 meters (3 – 6.5 feet)5 – 10 centimeters (2 – 4 inches)
Europe1.0 – 2.0 meters (3 – 6.5 feet)5 – 10 centimeters (2 – 4 inches)
USA0.9 – 1.8 meters (3 – 6 feet)5 – 10 centimeters (2 – 4 inches)
Australia1.0 – 2.0 meters (3 – 6.5 feet)5 – 10 centimeters (2 – 4 inches)
India1.0 – 2.0 meters (3 – 6.5 feet)5 – 10 centimeters (2 – 4 inches)
UK1.0 – 2.0 meters (3 – 6.5 feet)5 – 10 centimeters (2 – 4 inches)
Canada1.0 – 2.0 meters (3 – 6.5 feet)5 – 10 centimeters (2 – 4 inches)
Philippines1.0 – 2.0 meters (3 – 6.5 feet)5 – 10 centimeters (2 – 4 inches)

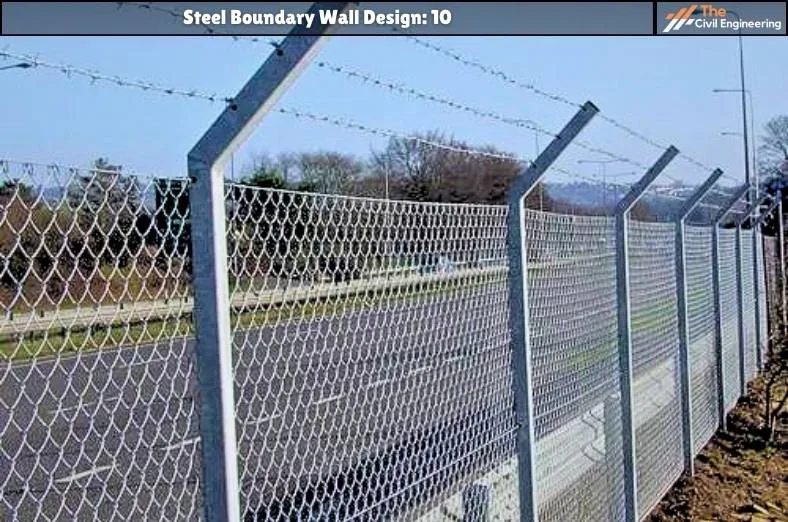

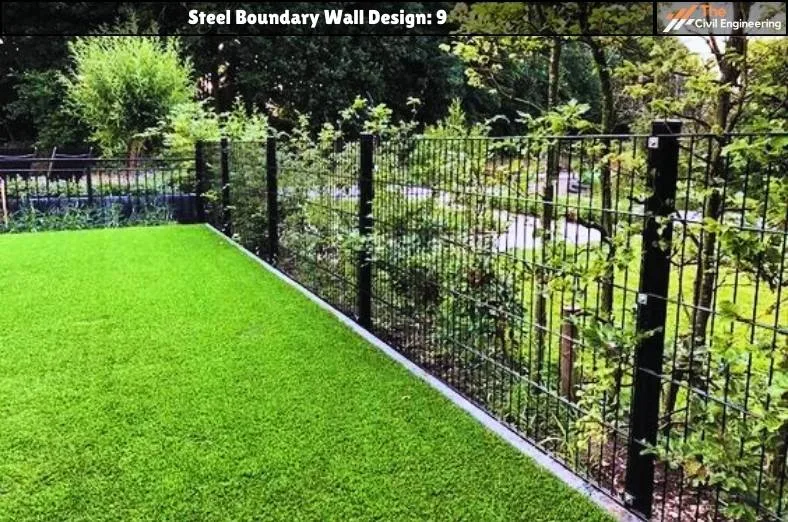

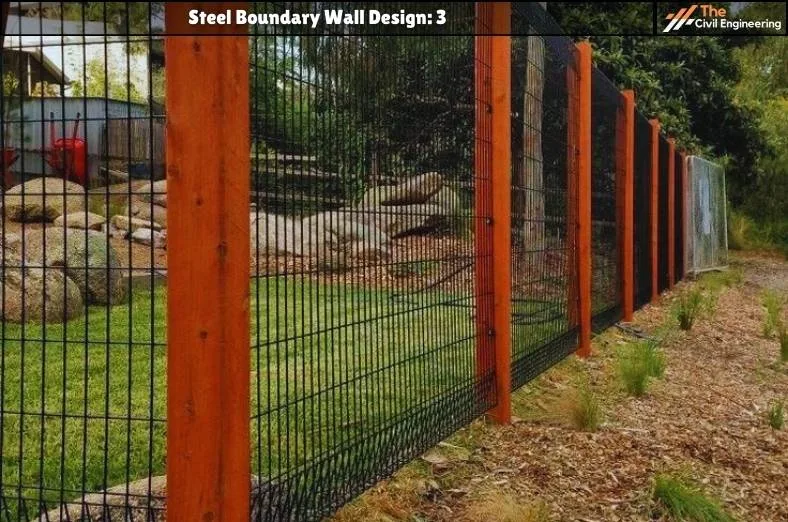

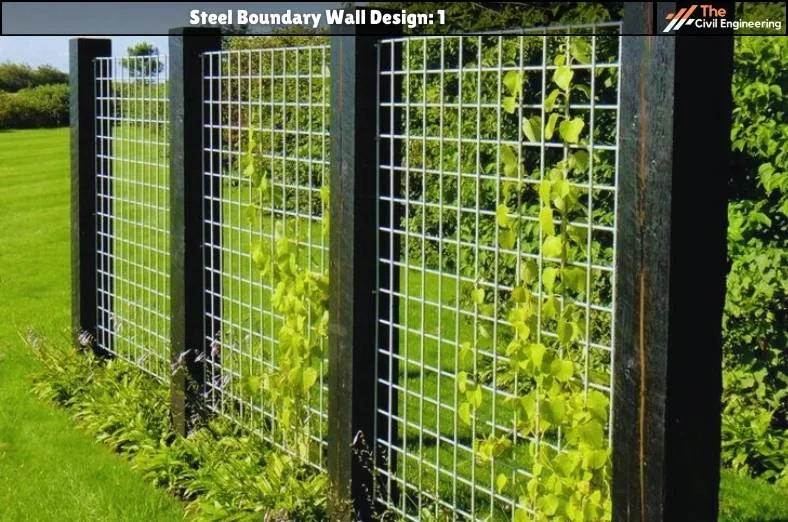

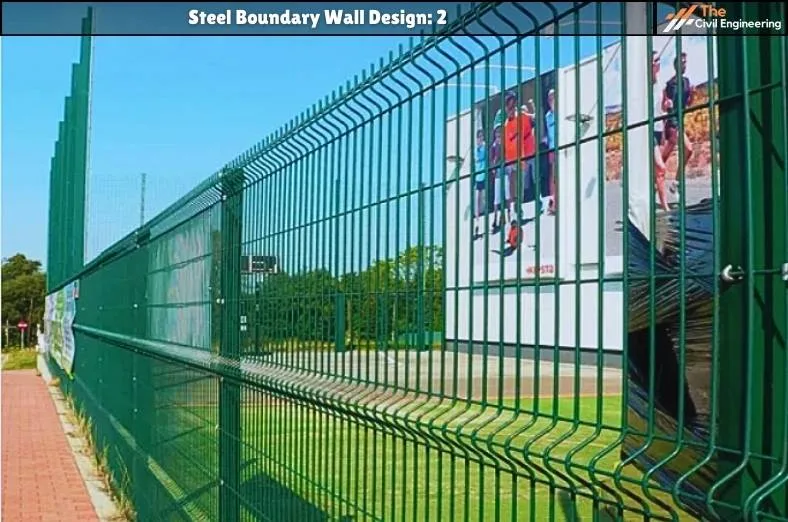

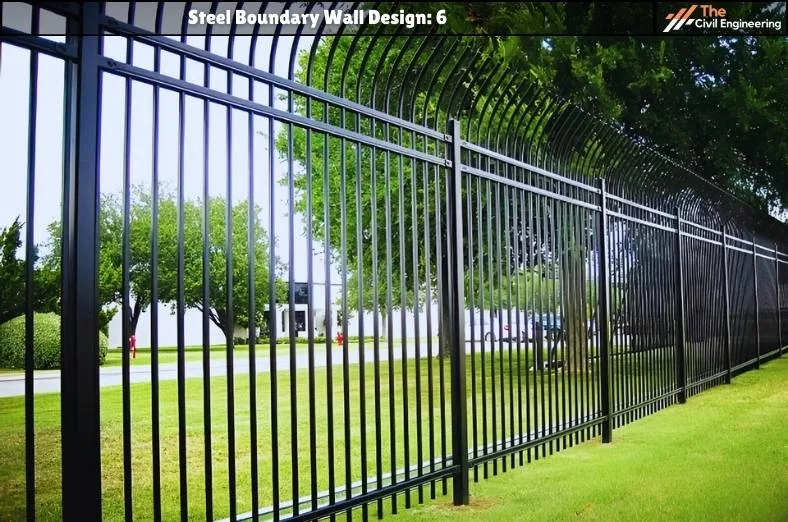

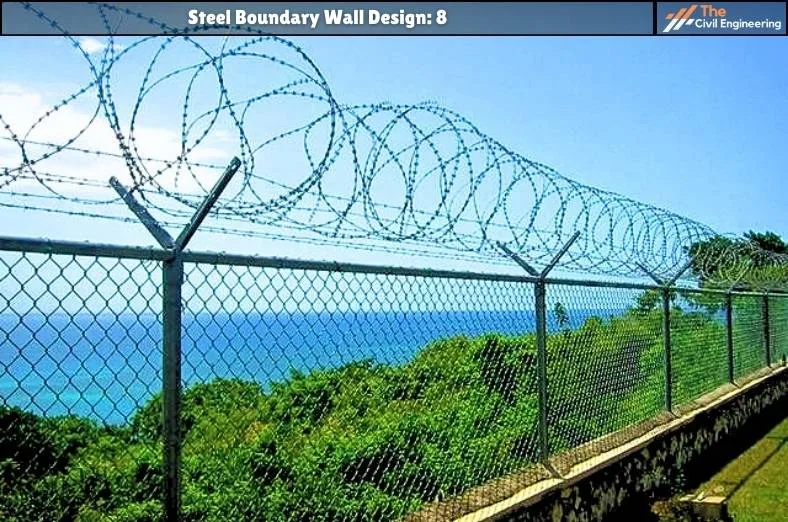

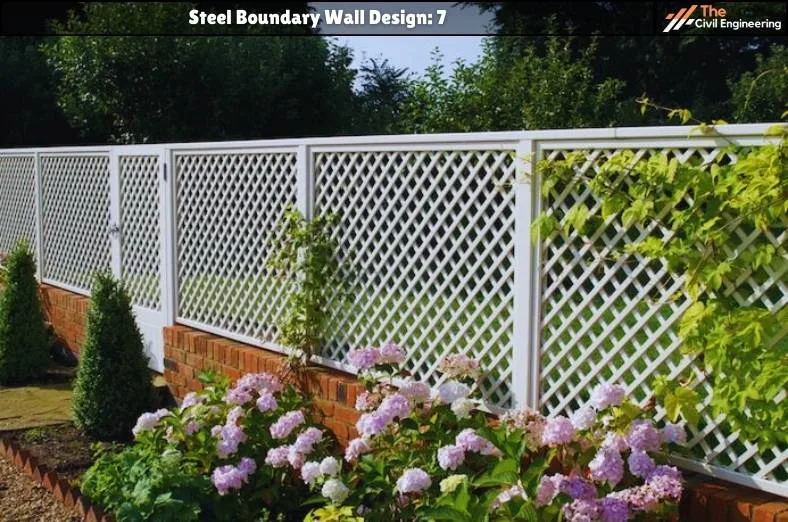

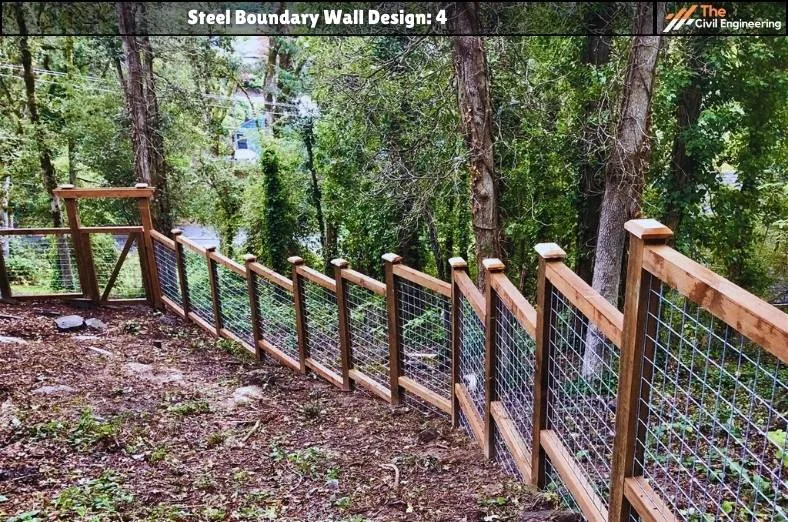

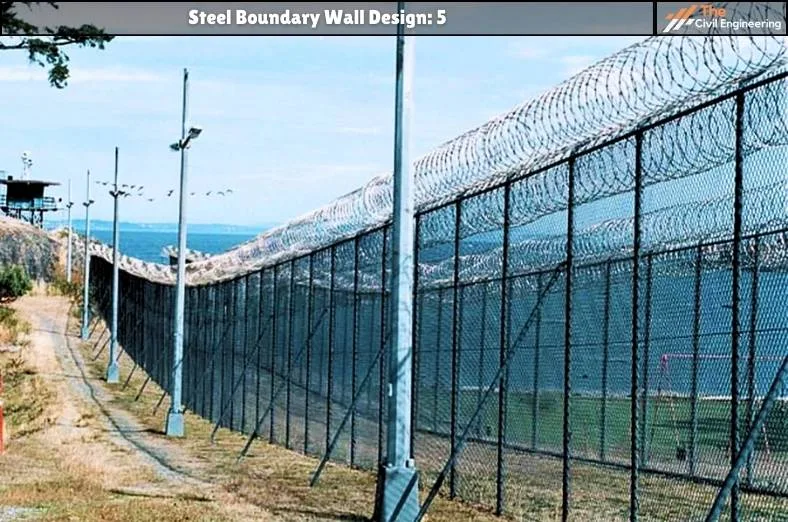

Stunning Designs of Steel Boundary Wall



Steel Boundary Wall: 10 Stunning Designs, Key Details, and Standard Sizes



Steel Boundary Wall: 10 Stunning Designs, Key Details, and Standard Sizes



Steel Boundary Wall: 10 Stunning Designs, Key Details, and Standard Sizes



Steel Boundary Wall: 10 Stunning Designs, Key Details, and Standard Sizes



Steel Boundary Wall: 10 Stunning Designs, Key Details, and Standard Sizes



Steel Boundary Wall: 10 Stunning Designs, Key Details, and Standard Sizes



Steel Boundary Wall: 10 Stunning Designs, Key Details, and Standard Sizes



Steel Boundary Wall: 10 Stunning Designs, Key Details, and Standard Sizes



Steel Boundary Wall: 10 Stunning Designs, Key Details, and Standard Sizes



Steel Boundary Wall: 10 Stunning Designs, Key Details, and Standard Sizes

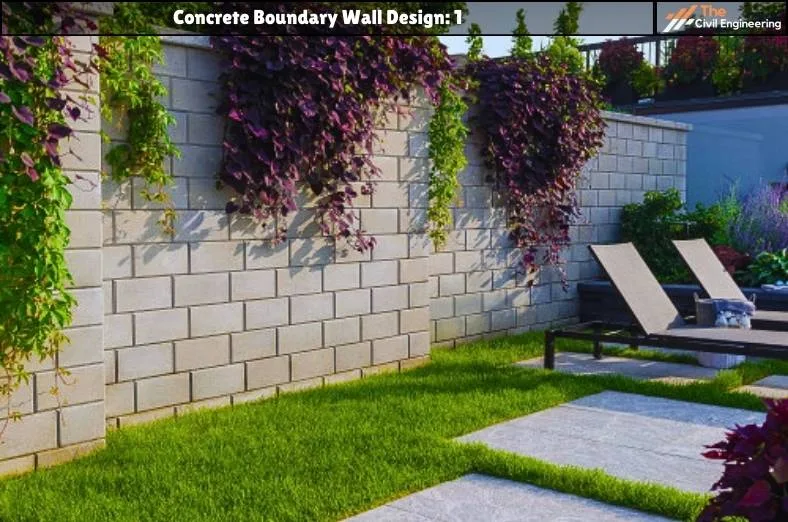

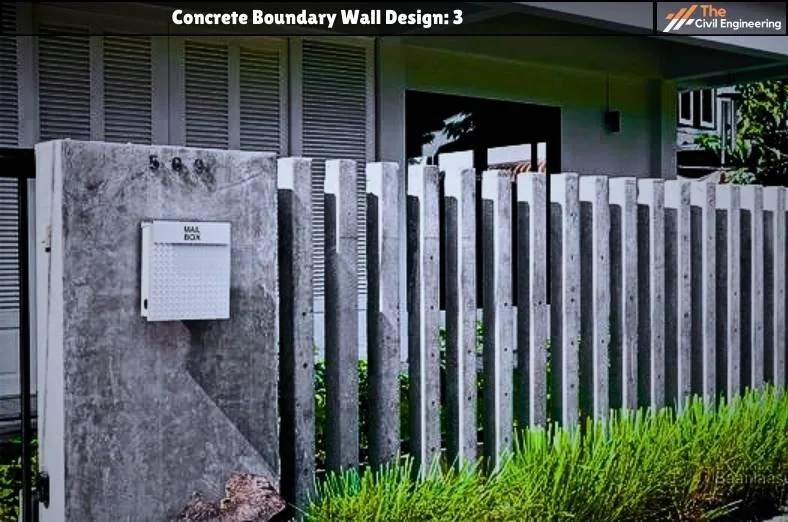

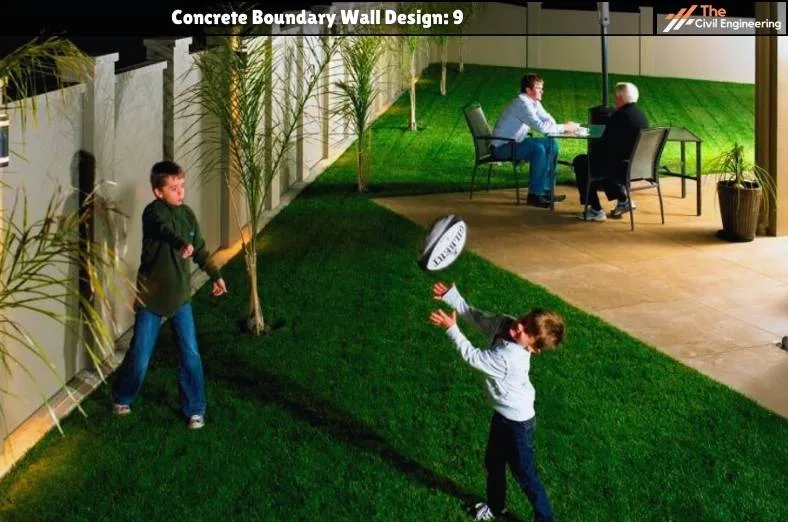

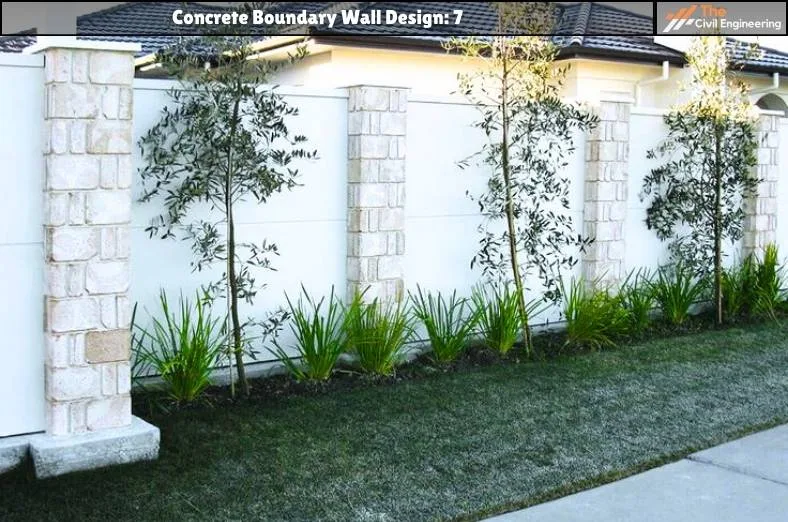

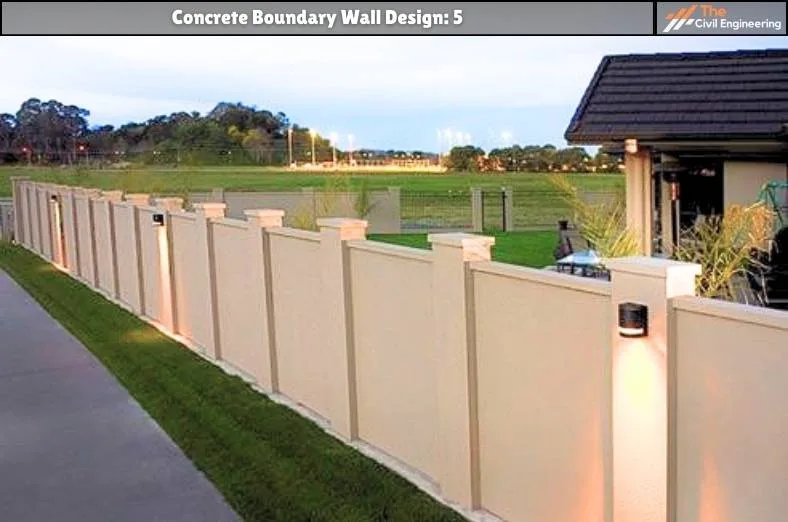

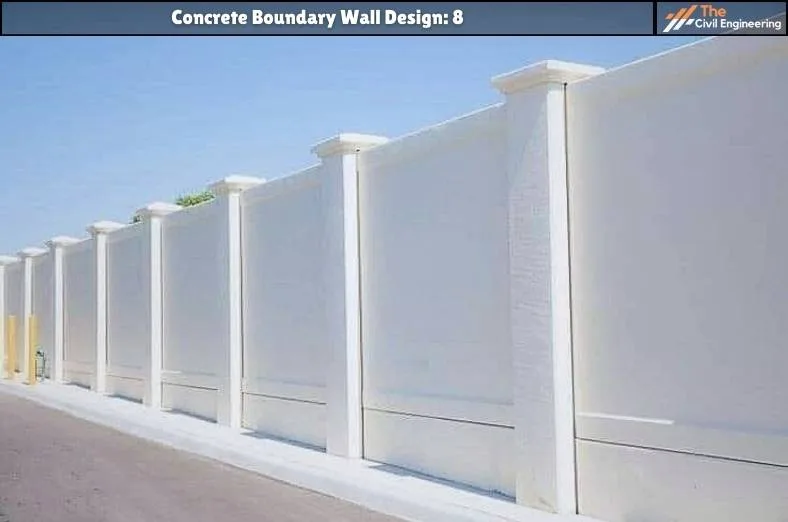

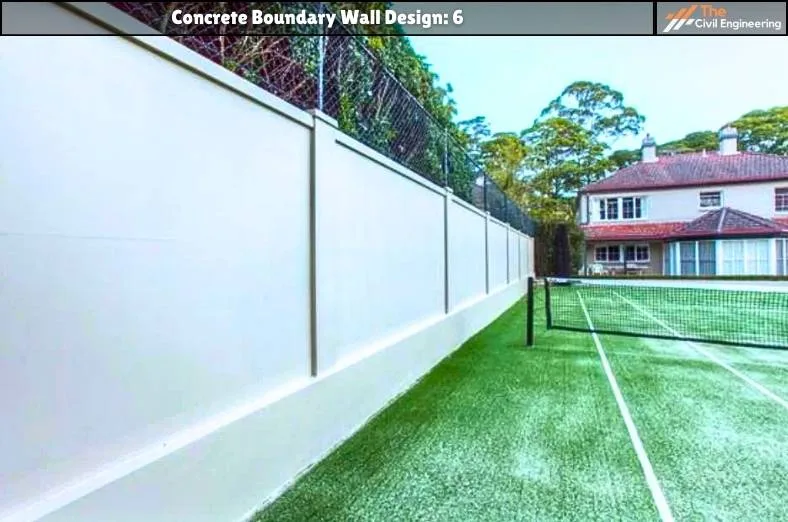

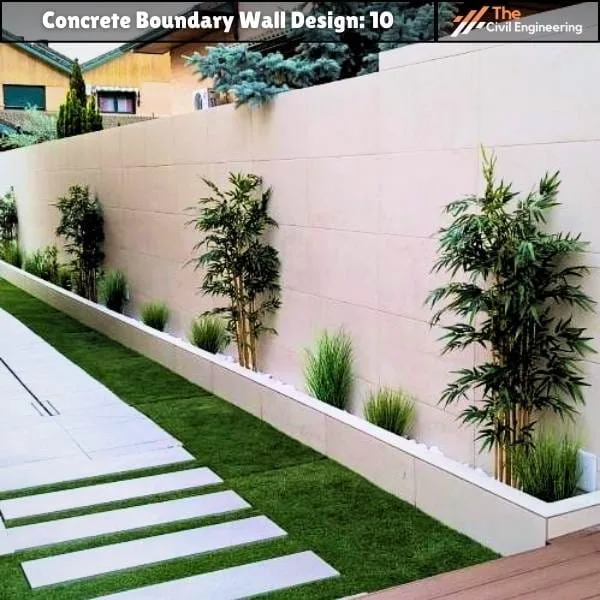

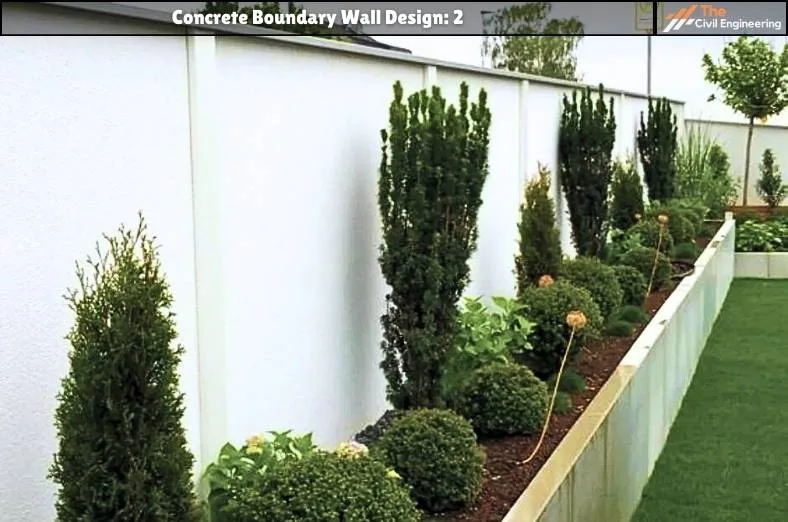

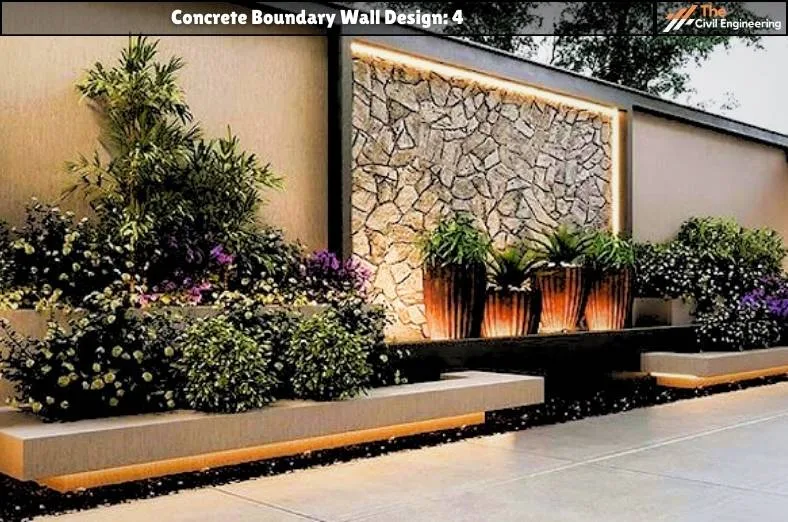

e. Concrete Boundary Wall

The boundary wall constructed using cast in situ concrete or precast concrete (like concrete blocks) as the chief material is called a concrete boundary wall.

Some of the information regarding the concrete boundary wall is given below:

AspectDescription
MaterialsConcrete blocks or poured concrete.
Design & StyleVersatile design with options for textures and finishes.
Height & WidthHeights: 1.0-2.0 meters, Widths: 15-30 cm.
Privacy & SecurityOffers privacy and security; suitable for various settings.
DurabilityExtraordinarily durable and weather-resistant.
CostModerate cost, with variations based on design complexity.
FoundationsRequires strong foundations for stability.
RegulationsMust adhere to local building codes and regulations.
MaintenanceLow maintenance; may need occasional repainting.
CustomizationCustomizable with textures, colors, and patterns.



Standard Height of Concrete Boundary Wall

The standard height and width of concrete boundary wall in different nations is provided below:

RegionTypical HeightTypical Width
Asia1.0 – 2.0 meters (3 – 6.5 feet)15 – 30 centimeters (6 – 12 inches)
Europe1.0 – 2.0 meters (3 – 6.5 feet)15 – 30 centimeters (6 – 12 inches)
USA0.9 – 1.8 meters (3 – 6 feet)15 – 30 centimeters (6 – 12 inches)
Australia1.0 – 2.0 meters (3 – 6.5 feet)15 – 30 centimeters (6 – 12 inches)
India1.0 – 2.0 meters (3 – 6.5 feet)15 – 30 centimeters (6 – 12 inches)
UK1.0 – 2.0 meters (3 – 6.5 feet)15 – 30 centimeters (6 – 12 inches)
Canada1.0 – 2.0 meters (3 – 6.5 feet)15 – 30 centimeters (6 – 12 inches)
Philippines1.0 – 2.0 meters (3 – 6.5 feet)15 – 30 centimeters (6 – 12 inches)



Stunning Designs of Concrete Boundary Wall

Concrete Boundary Wall: 10 Stunning Designs, Key Details, and Standard Sizes



Concrete Boundary Wall: 10 Stunning Designs, Key Details, and Standard Sizes



Concrete Boundary Wall: 10 Stunning Designs, Key Details, and Standard Sizes



Concrete Boundary Wall: 10 Stunning Designs, Key Details, and Standard Sizes



Concrete Boundary Wall: 10 Stunning Designs, Key Details, and Standard Sizes



Concrete Boundary Wall: 10 Stunning Designs, Key Details, and Standard Sizes



Concrete Boundary Wall: 10 Stunning Designs, Key Details, and Standard Sizes



Concrete Boundary Wall: 10 Stunning Designs, Key Details, and Standard Sizes



Concrete Boundary Wall: 10 Stunning Designs, Key Details, and Standard Sizes



Concrete Boundary Wall Design: 9






g. Living Boundary Wall (Hedge or Vegetation or Plant)

The boundary wall where plants or vegetation are utilized is called a plant boundary wall.

Some of the information regarding the plant boundary wall is given below:

AspectDescription
MaterialsLive plants or hedges, such as shrubs or trees.
Design & StyleNatural and green, with variations in plant types.
Height & WidthHeights: 1.0-2.5 meters (varies by plant type), Widths: Varies based on plant type.
Privacy & SecurityIt provides privacy but may be less secure than other materials.
DurabilitySubject to plant health and maintenance, it may require regular pruning.
CostCosts vary based on plant selection and maintenance needs.
FoundationsNo structural foundation; relies on plant root systems.
RegulationsWe may need to adhere to local regulations regarding plant heights and maintenance.
MaintenanceRegular pruning and care to maintain shape and health.
CustomizationLimited customization in terms of plant types and growth patterns.



Standard Height of Plant Boundary Wall

The standard height and width of plant boundary wall in different nations is provided below:

RegionTypical HeightTypical Width
Asia1.0 – 2.5 m (3′ – 8′)Varies based on plant type
Europe0.8 – 2.0 m(2.5′ – 6.5′)Varies based on plant type
USA1.0 – 2.5 m(3′ – 8′)Varies based on plant type
Australia1.0 – 2.5 m(3′- 8′)Varies based on plant type
India1.0 – 2.5 m (3′ – 8′)Varies based on plant type
UK0.8 – 2.0 m(2.5′ – 6.5′)Varies based on plant type
Canada0.8 – 2.0 m(2.5′ – 6.5′)Varies based on plant type
Philippines1.0 – 2.5 m (3′ – 8′)Varies based on plant type

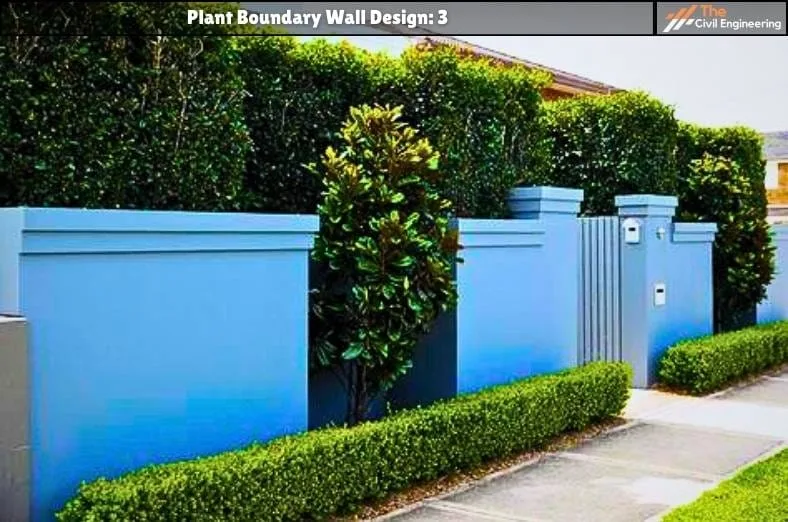

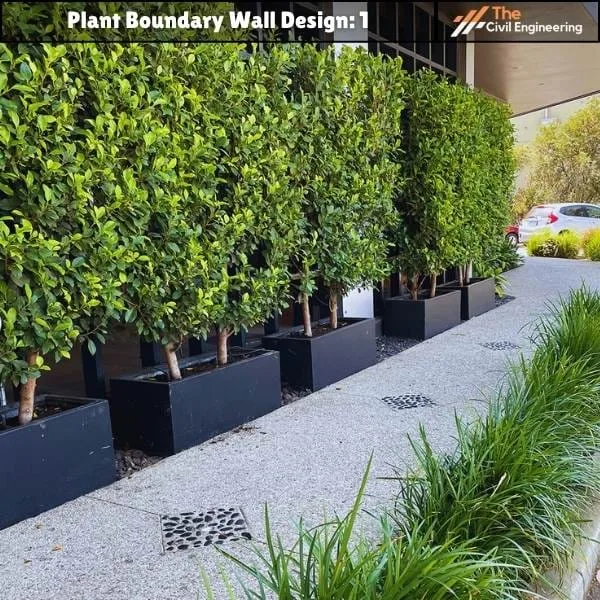

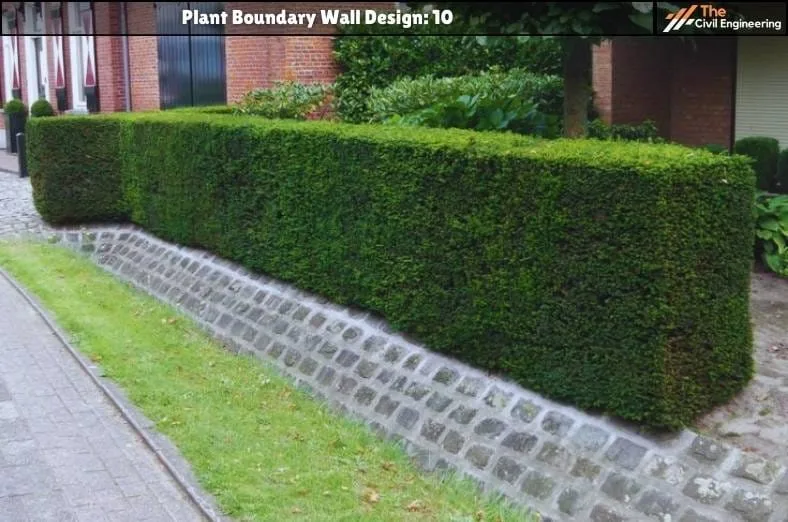

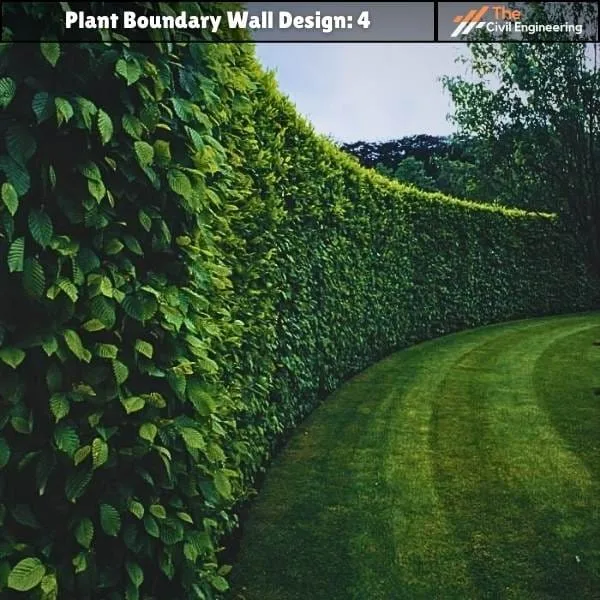

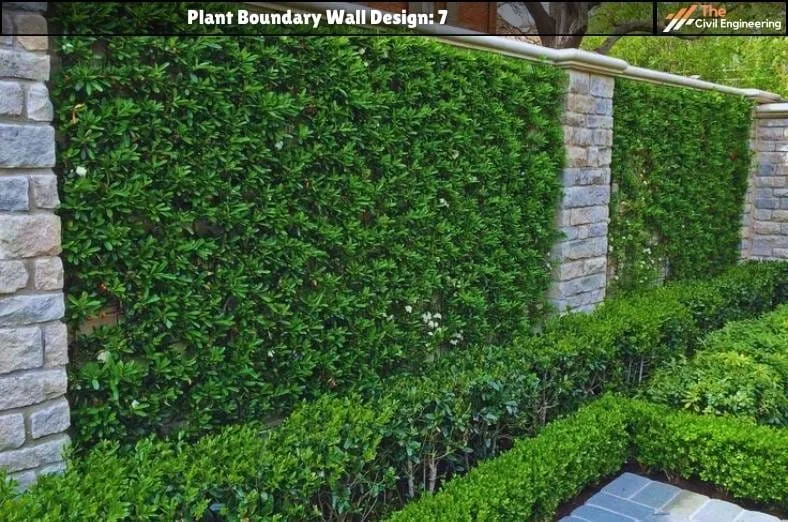

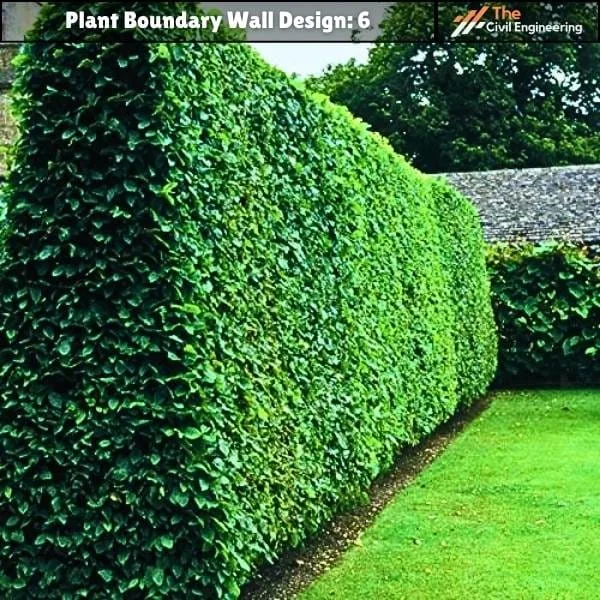

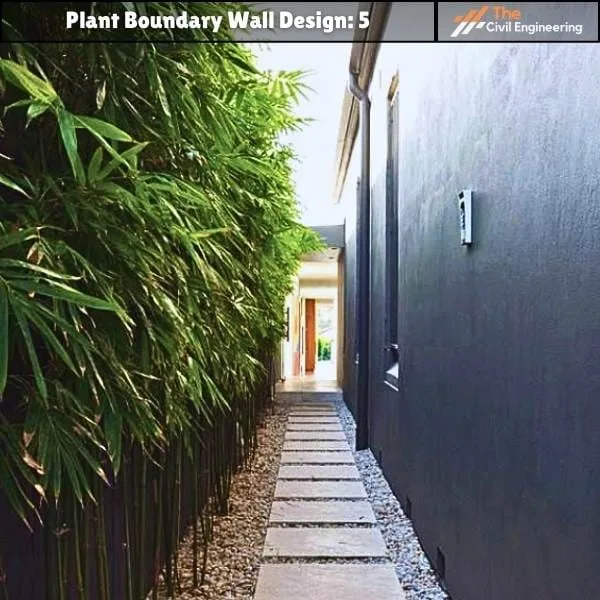

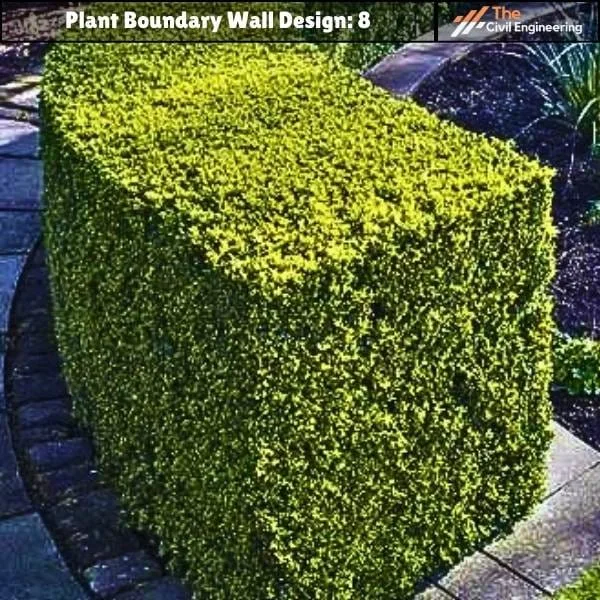

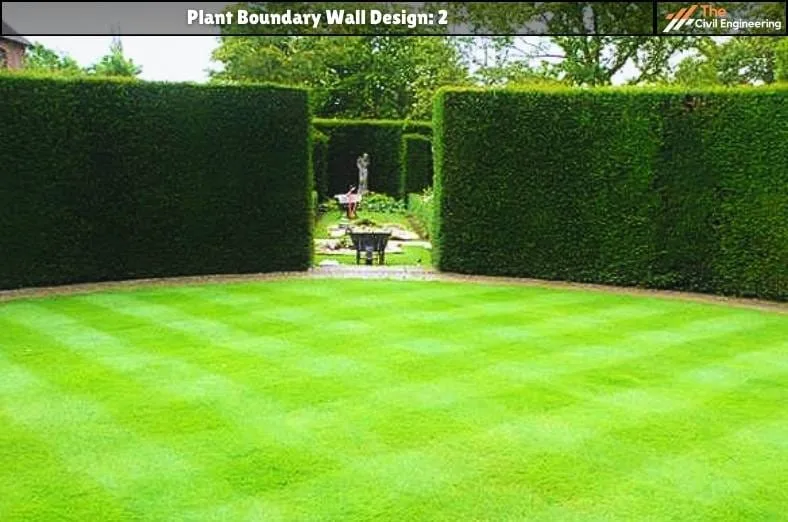

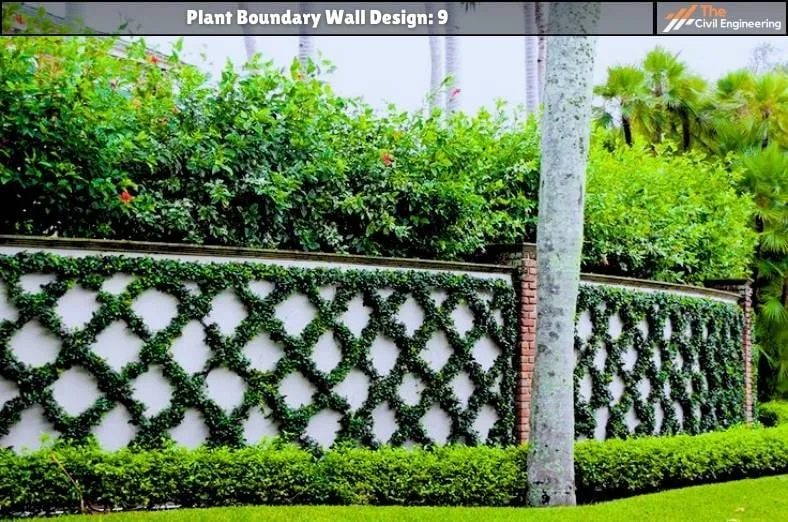

Stunning Designs of Plant Boundary Wall



Plant Boundary Wall: 10 Stunning Designs, Key Details, and Standard Sizes



Plant Boundary Wall: 10 Stunning Designs, Key Details, and Standard Sizes



Plant Boundary Wall: 10 Stunning Designs, Key Details, and Standard Sizes



Plant Boundary Wall: 10 Stunning Designs, Key Details, and Standard Sizes



Plant Boundary Wall: 10 Stunning Designs, Key Details, and Standard Sizes



Plant Boundary Wall: 10 Stunning Designs, Key Details, and Standard Sizes



Plant Boundary Wall: 10 Stunning Designs, Key Details, and Standard Sizes



Plant Boundary Wall: 10 Stunning Designs, Key Details, and Standard Sizes



Plant Boundary Wall: 10 Stunning Designs, Key Details, and Standard Sizes



Plant Boundary Wall: 10 Stunning Designs, Key Details, and Standard Sizes






4. Advantages of Boundary Wall

a. It improves the aesthetic look.

b. It provides privacy, safety, and security to the structure.

c. It reduces the conflict between the landlords.






5. Disadvantages of Boundary Wall

a. Chance of overturning if the low depth is provided below ground level.

b. High initial construction cost.

c. Requirements of maintenance.






Read Also: Parapet Wall
Read Also: Breast Wall






The Civil Engineering
Latest Articles
Related Articles
