Trapezoidal footing : Uses, Advantages & Disadvanatges of Trapezoidal footing



Trapezoidal footing is a type of footing that holds unequal loads from 2 columns when the heaviest load outside the column distance is restricted.

It is utilized when the area of footing is fixed and the soils at the site are loose soil.






  1. Formula for Calculating Trapezoidal Footing Volume

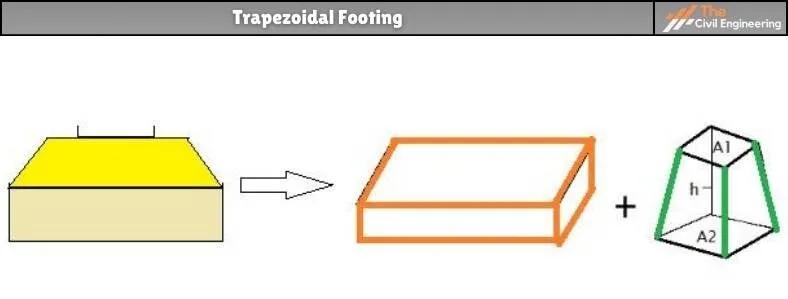

As we know, Trapezoidal footing is made by the superimposing of a rectangular cuboid and truncated pyramid as shown in the figure below.



Trapezoidal Footing

Now,

The volume of trapezoidal footing=Volume of Rectangular cuboid (V1)  +  Volume of a truncated pyramid (V2)

= V1 + V2       …………….(Eq.1)

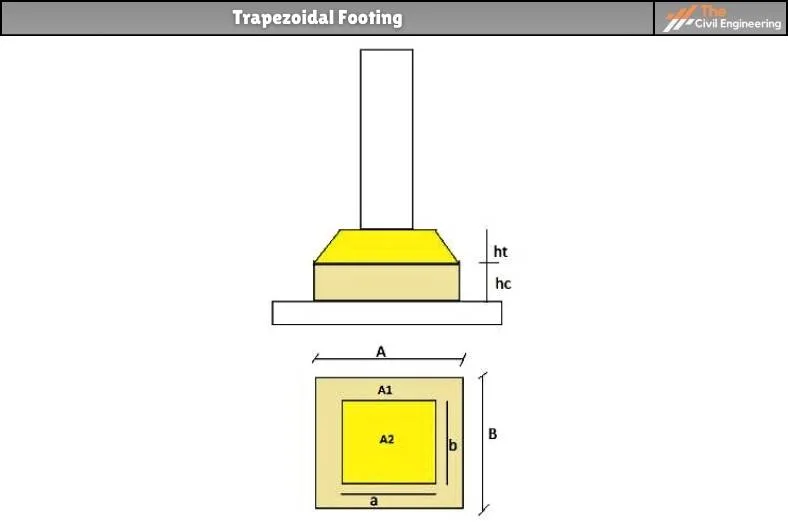

Trapezoidal Footing



I. Volume of rectangular cuboid (V1);

= A * B * hc    …………….(Eq.2 )

where,

A= length of the cuboid

B= Breadth of cuboid

hc= Height of cuboid



II. Volume of a truncated pyramid ( V2 );

= ht/3 * ( A1 + A2 + √(A1 +A2) )  ……..(eq.3)

Where,

A1= area of the bottom surface of the truncated pyramid

A2= area of the upper surface of the pyramid

ht= height of the pyramid



From equations 1,2 and 3, we can write the final  formula for calculating the volume of  trapezoidal footing as shown below;

= V1 + V2

= ( A*B*hc)  + ht/ 3 ( A1 + A2 + (√ (A1+A2)) )



Trapezoidal Footing

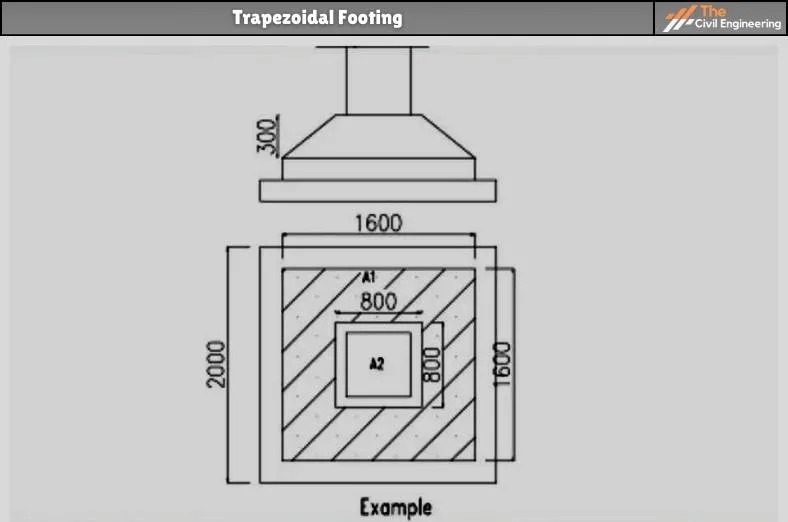

Now, We are going to find out the volume of trapezoidal footing shown in Figure 3 above;

i. ht= 300mm = 0.3m

ii. hc= 300mm=0.3m (let us assume)

iii. Area of cuboid (A *B)= (2000 mm * 1600 mm) = 3.2 m²

iv. Area of the bottom surface of the pyramid(A1) =3.2m²

v. Area of the top surface of the pyramid (A2)= (800*800) mm=0.64m²

Now,

Total Volume= V1 + V2

=( A*B*hc)  + ht/ 3 ( A1 + A2 + (√ (A1+A2)) )

=(3.2 * 0.3) + 0.3/3 (3.2+0.64 +(√(3.2+0.64)))

=0.96 +0.57995

= 1.539959 m3

The total volume of the trapezoidal footing in figure 3 = 1.5399m3






  3. Uses

Trapezoidal footing’s uses are as follows:

I. For residential houses and buildings.

II. When the load applied is uneven or unequal.

III. The soil at the site is loose.






  4. Advantages

The advantages of trapezoidal footing are as follows:

a. Concrete uses are less.

b. Cheap to construct.

c. Less reinforcement is needed.






  5. Disadvantages

The disadvantages of trapezoidal footing are as follows:

a. Good for small buildings only.

b. Chance of settlement.

c. Foundation subjected to pull out, torsion, moment.
